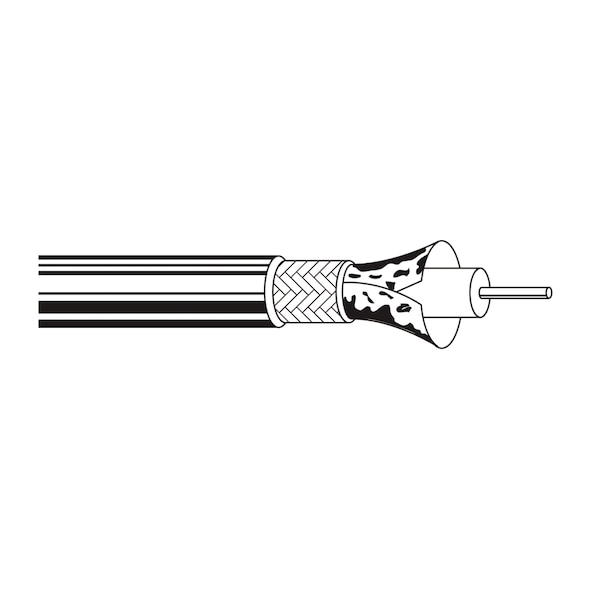

RG59 23 SOL BC FPE DUOFOIL+95%, TNC BRD SHD PVC JKT NEC CMR, 1000FT
| Shielding | Foil + Braid |
|---|---|
| Length | 1,000 ft |
| Color | Blue, Light |
| Insulation Material | Polyolefin (PO, PE, PP) |
| Conductor Material | Bare Copper |
| Impedance | 75 ohms (Nominal Impedance) |
| Suitability - Aerial | Yes - Black only, when supported by messenger wire |
| EU Directive 2015/863/EU | Yes |
| EU CE Mark | Yes |
| UL Flammability | UL1666 Vertical Shaft |
| Put-Up Type | Reel |
| UL voltage rating | 300 V RMS |
| UL Temp Rating | 75°C |
| Suitability - Indoor | Yes |
| Suitability - Outdoor | Yes - Black only |
| UV Resistance | Yes |
| Conductor Count | 1 |
| Conductor Configuration | 1 Coax / Triax |
| CPR Euroclass | Eca |
| AWG Size | 23 |
| Material@OuterShield1 2 | Tinned Copper |
| Material@Insulation01 | PE - Polyethylene |
| Jacket | PVC |
| Stranding@Conductor1 | Solid |
| Environmental Space | Indoor, Outdoor |
| CPR UKCA Class | Eca |
| CSA Flammability | FT4 |
| Plenum | Riser |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| CSA | FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS |
| Package Quantity | 1 |
