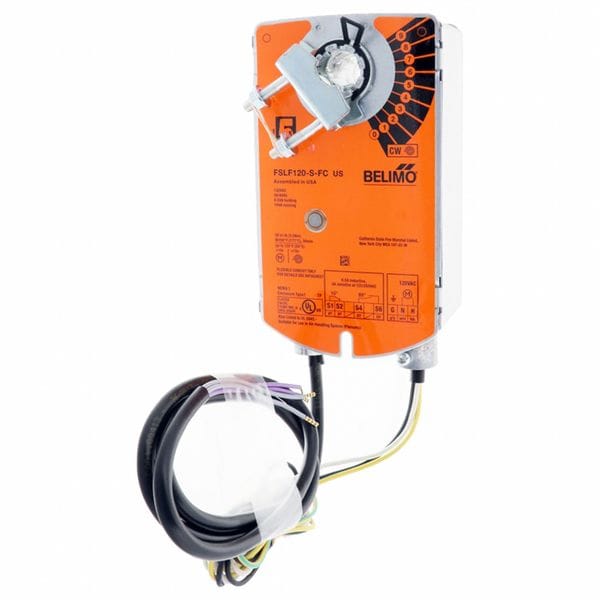

Actuator, Damper, 30 in-lb, 120V AC
| Item | Actuator |
|---|---|
| Overall Width | 3-7/8 in |
| Overall Height | 7 in |
| Maximum Operating Temperature | 122 deg F |
| Includes | 18 GA Appliance Cable, 1 m with 1/2 in Conduit Connector |
| Standards | C-UL-US Acc to UL60730-1A/-2-14, CAN/CSA E60730-1:02 NYC Department of Buildings MEA 197-07-M California State Fire Marshal Listing 3210-1593:102, ISO 9001 |
| Depth | 3-1/4 in |
| Spring Return | Spring Return |
| Signal Type | Floating Point |
| Power Rating | 4W |
| Input Voltage | 120V AC |
| Product Type | Actuator |
| Minimum Operating Temperature | 32 deg F |
| Housing Material Finish | Galvanized |
| NEMA Rating | 1 |
| Plenum Rating | Plenum Rated |
| For Use With Building Automation Systems | Building Automation System Compatible |
| IP Rating | IP30 |
| Valve Application | Damper |
| Power Consumption | 18 VA |
| Contact Form | SPST |
| Number of Auxiliary Switches | 2 |
| Time to Close | 15 sec |
| Fire Application Rating | Fire Application Rated |
| Housing Material | Steel |
| Electrical Connection Type | Hardwired |
| Output Signal | Not Applicable |
| Shaft Rotation | CW/CCW |
| Smoke Application Rating | Smoke Application Rated |
| Weight | 4.4 lb |
| Overall Depth | 3-1/4 in |
| Rated Torque | 30 in-lb |
| Application | Fire and Smoke Dampers |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
