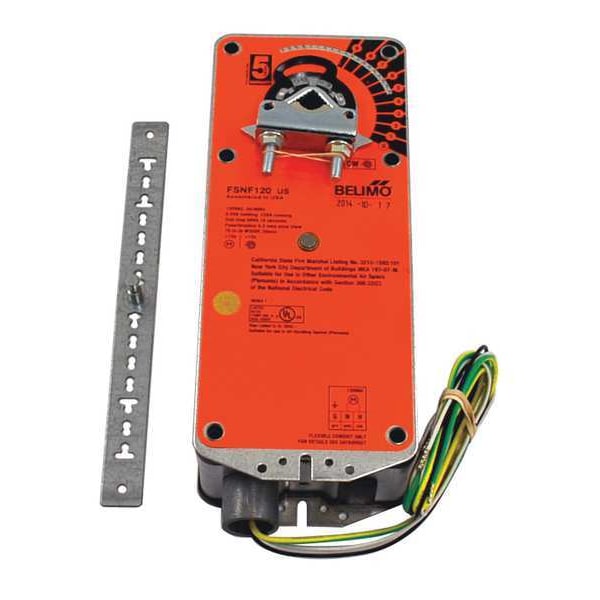

Fire and Smoke Damper Actuator, 120VAC
| Spring Return | Spring Return |
|---|---|
| Torque | 70 in-lb |
| Depth | 3-1/4 in |
| Voltage | 120V AC |
| Stroke Deg. | 0 to 95 |
| Motor Direction | CW or CCW |
| Mounting Type | Direct Mount |
| Timing | 15 sec |
| Item | Fire and Smoke Actuator |
| Shaft Type | 3/8 in to 1-3/64 in Round |
| Signal Type | On/Off |
| Height | 10-13/64 in |
| Ambient Temp. Range | 32 to 122 deg F |
| Width | 3-55/64 in |
| Includes | Mounting Hardware |
| Input Voltage | 120 V AC |
| Overall Depth | 3-1/4 in |
| IP Rating | IP40 |
| For Shaft Diameter | 1 in |
| Output Signal | Not Applicable |
| For Shaft Height | Not Applicable |
| Housing Material | Steel |
| For Shaft Shape | Round |
| Fire Application Rating | Fire Application Rated |
| Housing Material Finish | Galvanized |
| For Use With Building Automation Systems | Building Automation System Compatible |
| NEMA Rating | 1 |
| Electrical Connection Type | Hardwired |
| Contact Form | SPDT |
| Time to Close | 15 sec |
| Overall Height | 10-1/4 in |
| Overall Width | 3-7/8 in |
| Valve Application | Damper |
| Rated Torque | 70 in-lb |
| For Shaft Width | Not Applicable |
| Power Consumption | 27 VA |
| Product Type | Fire, Smoke Actuator |
| Stroke Degree | 95 deg |
| Shaft Rotation | CW, CCW |
| Smoke Application Rating | Smoke Application Rated |
| Maximum Operating Temperature | 122 deg F |
| Minimum Operating Temperature | 32 deg F |
| Weight | 6.6 lb |
| Number of Auxiliary Switches | 0 |
| Application | Fire and Smoke Dampers |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
