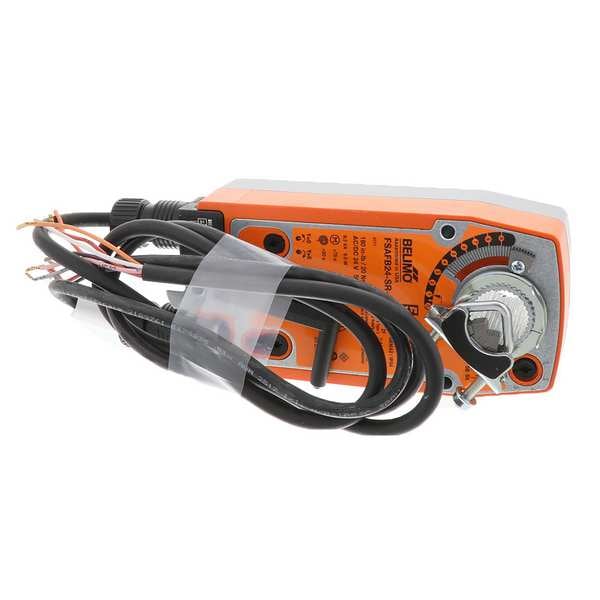

Fire & Smoke Actuator, Damper, 180 in-lb
| Spring Return | Spring Return |
|---|---|
| Signal Type | Proportional |
| Torque | 180 in-lb |
| Voltage | 24 V AC/DC |
| Timing | Less than 75 sec |
| Switch Type | 2 SPDT |
| Item | Fire and Smoke Actuator |
| For Use With | Dampers |
| Power Rating | 6.5 W |
| Ambient Temp. Range | -22 to 122 deg F |
| Electrical Connections | Cable |
| Depth | 4.48 in |
| Height | 9.69 in |
| Shaft Type | Round |
| Motor Direction | CW, CCW |
| Input Voltage | 24V AC/DC |
| Width | 3.86 in |
| Power Consumption | 10 VA |
| Plenum Rating | Plenum Rated |
| Smoke Application Rating | Smoke Application Rated |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Overall Height | 9-3/4 in |
| Number of Auxiliary Switches | 2 |
| Contact Form | SPDT |
| Stroke Degree | 95 Degrees |
| For Shaft Height | Not Applicable |
| IP Rating | IP54 |
| Time to Close | 75 sec |
| Maximum Operating Temperature | 122 deg F |
| For Shaft Width | Not Applicable |
| Overall Depth | 4-1/2 in |
| NEMA Rating | 2 |
| Valve Application | Damper |
| Minimum Operating Temperature | -22 deg F |
| Weight | 5.7 lb |
| For Shaft Shape | Round |
| Product Type | Fire, Smoke Actuator |
| Housing Material | Steel |
| Standards | CE Certified, CSA Certified C22.2 No. 139, ISO 9001, UL 2043, UL 60730-1 |
| Housing Material Finish | Galvanized |
| Rated Torque | 180 in-lb |
| Output Signal | Not Applicable |
| Fire Application Rating | Fire Application Rated |
| For Shaft Diameter | 1 in |
| Electrical Connection Type | Hardwired |
| Shaft Rotation | CW, CCW |
| Overall Width | 3-7/8 in |
| Application | Fire and Smoke Dampers |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
