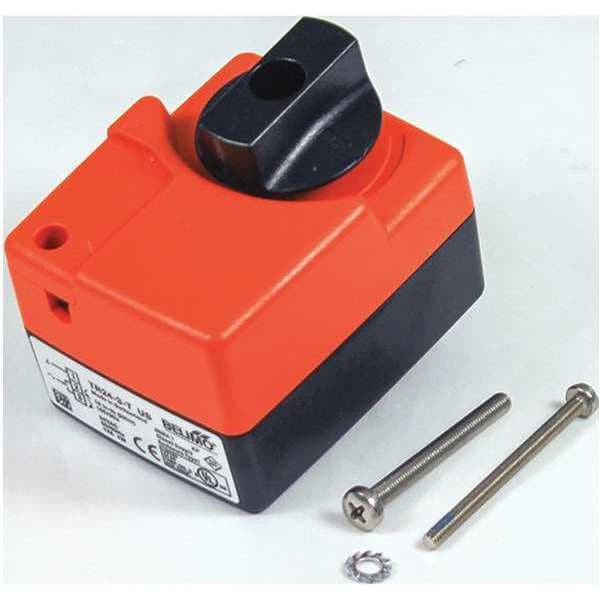

Rotary Actuator, 2 and 3 Way Ball Valve
| Spring Return | Non-Spring Return |
|---|---|
| Voltage | 24V AC |
| Ambient Temp. Range | -22 to 122 deg F |
| Height | 3-1/4 in |
| Width | 2-1/2 in |
| Power Rating | 1 W |
| Timing | 90 sec |
| Depth | 2-13/16 in |
| Motor Direction | CW or CCW |
| Item | Electric Ball Valve Actuator |
| Signal Type | Floating Point, Off, On |
| Stroke Deg. | 0 to 90 |
| Input Voltage | 24 V AC |
| Torque | Not Rated |
| Valve Application | Valve |
| Overall Height | 3-1/4 in |
| Shaft Rotation | CW, CCW |
| Rated Torque | Not Applicable |
| Contact Form | Not Applicable |
| Number of Auxiliary Switches | 0 |
| For Use With Building Automation Systems | Building Automation System Compatible |
| IP Rating | IP40 |
| Power Consumption | 1 VA |
| Maximum Operating Temperature | 122 deg F |
| Minimum Operating Temperature | -22 deg F |
| Overall Width | 2-1/2 in |
| Overall Depth | 2-13/16 in |
| Stroke Degree | 90 deg |
| Output Signal | Not Applicable |
| NEMA Rating | 1 |
| Electrical Connection Type | Terminals |
| Product Type | Valve Actuator |
| Time to Close | 90 sec |
| Operating Temperature - Maximum | 122 deg F |
| Auxiliary Contact Form | Not Applicable |
| Cycle Time | 90 sec |
| Electrical Lead Length | 3 ft |
| Operating Temperature - Minimum | -22 deg F |
| Control Signal | Floating Point, Off, On |
| Compatible Series | B200, B210, B220, B300, B310 |
| Return Action | Non-Spring Return |
| Stroke Length | Not Rated |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
