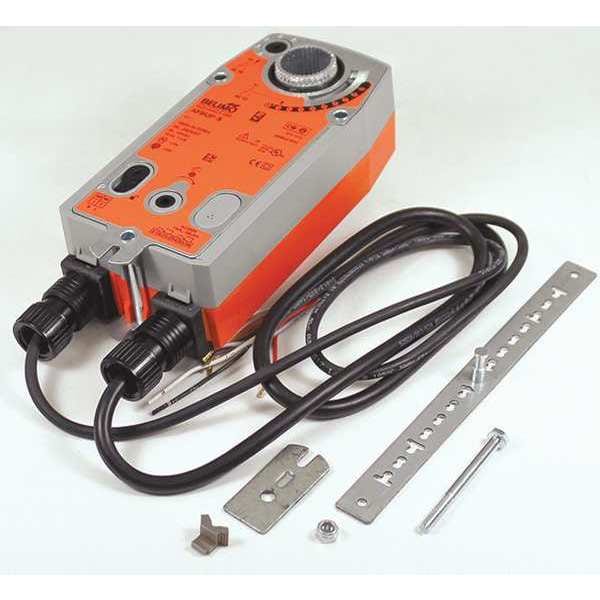

Sprng Rtrn Dmpr Actuator, 24VAC to 240VAC
| Height | 9-11/16 in |
|---|---|
| Depth | 3-27/64 in |
| Signal Type | On/Off |
| Item | Actuator |
| Timing | 75 sec |
| Motor Direction | CW or CCW |
| Spring Return | Spring Return |
| Shaft Type | 1/2 in to 1-3/64 in Round |
| Width | 3-5/32 in |
| Switch Type | 2 SPDT |
| Power Rating | 7 W |
| Torque | 180 in-lb |
| Ambient Temp. Range | -22 to 122 deg F |
| Includes | Mounting Hardware |
| Voltage | 24-240V AC |
| Stroke Deg. | 0 to 95 |
| Input Voltage | 24 to 125V DC, 24 to 240V AC |
| Rated Torque | 180 in-lb |
| Minimum Operating Temperature | -22 deg F |
| Maximum Operating Temperature | 122 deg F |
| For Shaft Shape | Round |
| Number of Auxiliary Switches | 2 |
| Electrical Connection Type | Hardwired |
| Contact Form | SPDT |
| Product Type | Damper Actuator |
| Overall Height | 9-3/4 in |
| Weight | 5.6 lb |
| Time to Close | 75 sec |
| For Shaft Width | Not Applicable |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Housing Material | Steel |
| For Shaft Height | Not Applicable |
| Valve Application | Damper |
| Power Consumption | 18 VA |
| Shaft Rotation | CW, CCW |
| Housing Material Finish | Galvanized |
| For Shaft Diameter | 1 in |
| Overall Width | 3-1/8 in |
| Output Signal | Not Applicable |
| IP Rating | IP54 |
| Overall Depth | 3-3/8 in |
| NEMA Rating | 2 |
| Stroke Degree | 95 deg |
| Application | Dampers |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
