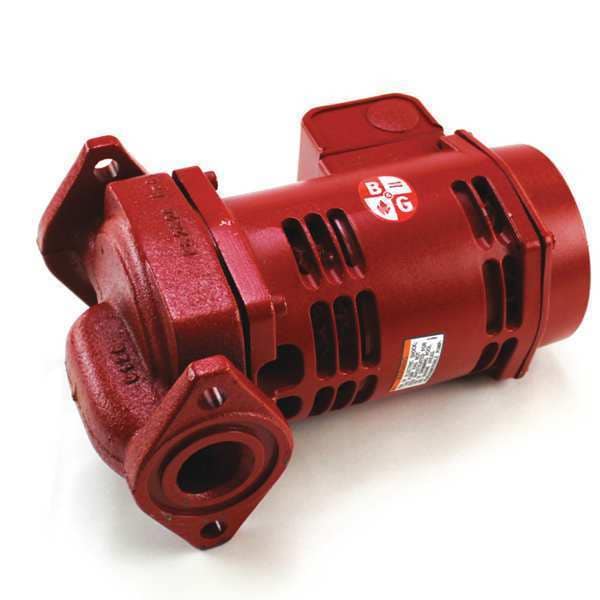

Pump, 2/5 HP, 115V, 1 Phase, 3250 rpm
| Voltage | 115VAC |
|---|---|
| For Use With | Universal |
| Width | 4-3/4 in |
| Height | 6-3/8 in |
| Phase | 1 |
| Item | Pump, 2/5 HP, 115V, 1 Phase, 3250 rpm, PL-55 CI |
| Fits Brand | Multiple |
| Standards | cULus |
| RPM | 3,250 |
| HP | 2/5 |
| Number of Speeds | 1 |
| Length | 9-9/16 in |
| Overall Length | 9.56 in |
| Max. Operating Pressure | 150 psi |
| Impeller Material | PPS |
| Shaft Material | Stainless Steel |
| Inlet/Outlet Size | 3/4 in to 1 1/2 in |
| Housing Material - Pumps | Cast Iron |
| Max. GPM @ Head | 50 gpm @ 0 ft |
| Min. GPM @ Head | 0 gpm @ 52.5 ft |
| Mechanical Seal | Carbon on Silicon Carbide |
| Max. Temp. | 225 Degrees F |
| Connection Style | NPT/Flange |
| Voltage - Pumps | 115 V |
| Maximum Flow Rate @ 10 Feet of Head | 44 gpm |
| Connection Type | Flange |
| Compatible Discharge Pipe Size | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Flange or Union Included | No |
| Maximum Flow Rate @ 15 Feet of Head | 40 gpm |
| Maximum Flow Rate @ 5 Feet of Head | 47 gpm |
| Maximum Flow Rate @ 25 Feet of Head | 32 gpm |
| Frequency | 60 Hz |
| Overall Width | 4-3/4 in |
| Maximum Flow Rate @ 40 Feet of Head | 17 gpm |
| Pump Type | Standard |
| Maximum Operating Pressure | 150 psi |
| Maximum Flow Rate @ 20 Feet of Head | 37 gpm |
| Pipe to Flange or Union Connection Type | FNPT |
| Pump Housing Material | Cast Iron |
| For Use With Potable Systems | No |
| Maximum Flow Rate @ 50 Feet of Head | 3 gpm |
| Series | PL-55 |
| Compatible Intake Pipe Size | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Face to Face Dimension | 6 3/8 in |
| Maximum Media Temperature | 225 Degrees F |
| Horsepower | 0.4 |
| Maximum Flow Rate @ 30 Feet of Head | 27 gpm |
| Maximum RPM | 3,250 rpm |
| Rotor Type | Dry |
| Nameplate Voltage | 115V AC |
| Maximum Flow Rate @ 1 Feet of Head | 50 gpm |
| Maximum Feet of Head | 53 ft |
| Overall Height | 6.38 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
