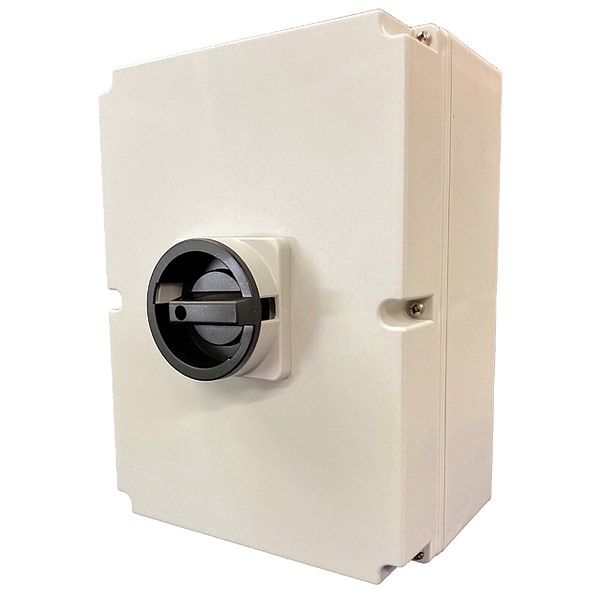

PV Solar rated isolator
| Item | Solar Safety Disconnect Switch |
|---|---|
| Standards | CB Certificate, CCC, cULus, EAC, UL 508i, UL Listed |
| Voltage | 600V DC |
| Enclosure Type | Enclosed |
| Housing Material | Plastic |
| Height | 9-1/2 in |
| Features | Arc Extinguishing Contact System, Non-Fused, Lock Function, Snap-Action Switching Speed is Independent from the Operator, Polarity Independent |
| IP Rating | IP67 |
| Depth | 4 in |
| Width | 7 in |
| Contact Form | 4PST |
| Current Rating | 48 A |
| NEMA Enclosure Rating | 4X |
| Protection Method | Fusible |
| Electrical Connection | Screw |
| Environment | Indoor/Outdoor |
| Ground Polarity | Not Applicable |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Phase | Three |
| Series | LS |
| UL 98B Certification | No |
| For Fuse Class | Not Applicable |
| Package Quantity | 1 |
