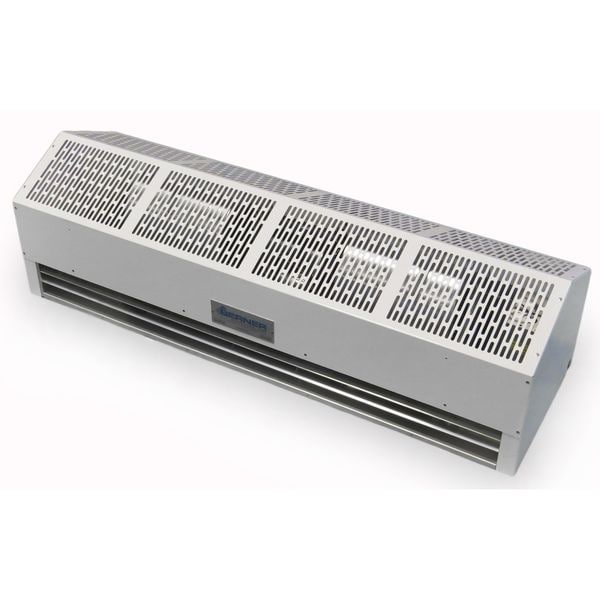

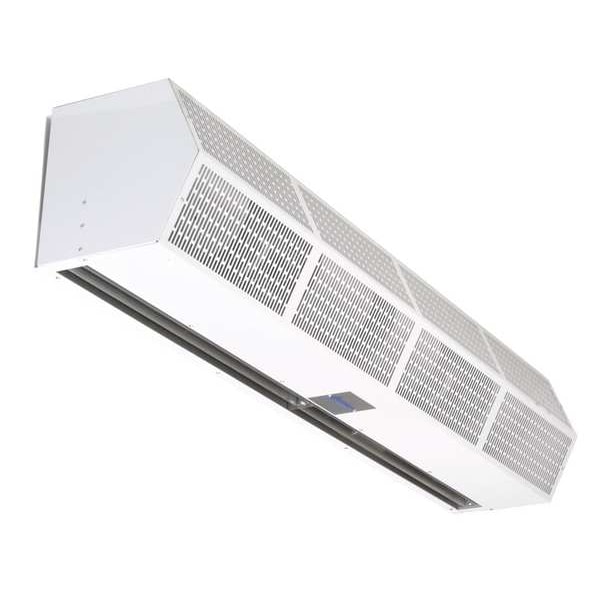

Air Curtain, 14 In. H, 51 In. W, 13 In. D
| Item | Unhtd 14"H 51"W 15"D Alumin Air Curtain |
|---|---|
| Width | 51 in |
| Phase | 1 |
| Max. Mounting Height | 7 ft |
| Number of Motors | 1 |
| Height | 14-3/4 in |
| Air Curtain Air Velocity | 3,500 fpm |
| Voltage | 115/208-240 |
| Air Curtain Air Volume | 1,768 cfm |
| Air Curtain Max. Door Width | 4 ft |
| Air Curtain dBA @ 10 Feet | 67 dBA |
| Depth | 14-1/4 in |
| Air Curtain Heated | No |
| Air Curtain Housing Material | Aluminum |
| Hz | 60 |
| Motor Enclosure | Totally Enclosed |
| Motor Type | Permanent Split Capacitor |
| Number of Speeds | 1 |
| Air Curtain Item | Air Curtain |
| Requires | Hard Wiring |
| Motor HP | 0.75 |
| Standards | AMCA Certified, ANSI/NSF 37, EPH Listed, UL Listed |
| Housing Color | White |
| Max. Amps | 7.5/3.8 to 3.8 |
| Max. RPM | 1,750 |
| Includes | Door Limit Switch, Plunger Style for Automatic Operation |
| Control Type | Activation Switch |
| Overall Height | 14 in |
| Overall Width | 51 in |
| Overall Depth | 15 in |
| Finish | Powder Coated |
| Housing Material | Aluminum |
| Grille Material | Aluminum |
| Power Consumption | 0.73 kW |
| Mounting Height for Insect Control | 7 ft |
| Mounting Hole Diameter | 1/4 in |
| Maximum Air Volume | 1,882 cfm |
| For Frame Opening Width | 4 ft |
| Mounting Height for Temperature Control | 7 ft |
| Full Load Current | 7.5/3.8 A |
| Heater Power Consumption | Not Applicable |
| Heated/Not Heated | Not Heated |
| HEPA Air Cleaning | No |
| Includes Mounting Fasteners | Not Available |
| Assembly | Not Available |
| Maximum Air Velocity | 3,815 fpm |
| Ultraviolet Air Cleaning | No |
| Nameplate Voltage | 120/208-240V AC |
| Washdown | No |
| Motor Horsepower per Motor | 0.75 HP |
| Minimum Operating Temperature | Not Available |
| Maximum Speed | 1,750 rpm |
| Power Cord Length | Not Available |
| Sound Level @ 10 ft | 67 dBA |
| Electrical Connection | Hardwired |
| Sanitation Certified | Yes |
| Maximum Operating Temperature | Not Available |
| Frequency | 60 Hz |
| Nozzle Width | 48 in |
| Profile Type | Standard Profile |
| For Outdoor Use | Yes |
| Series | SHD07 |
| Air Temperature Rise | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
