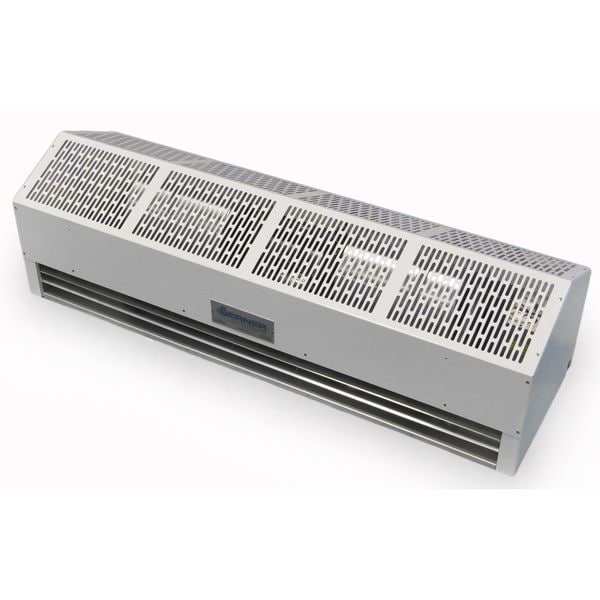

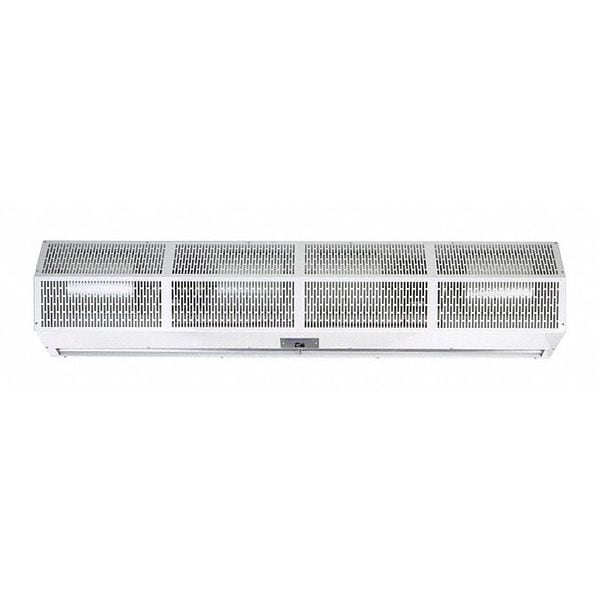

Heated Air Curtain, 14 In. H, 51 In. W
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Heated 14"H 51"W 15"D Alumin Air Curtain |
| Width | 51 in |
| Phase | 3 |
| Max. Mounting Height | 10 ft |

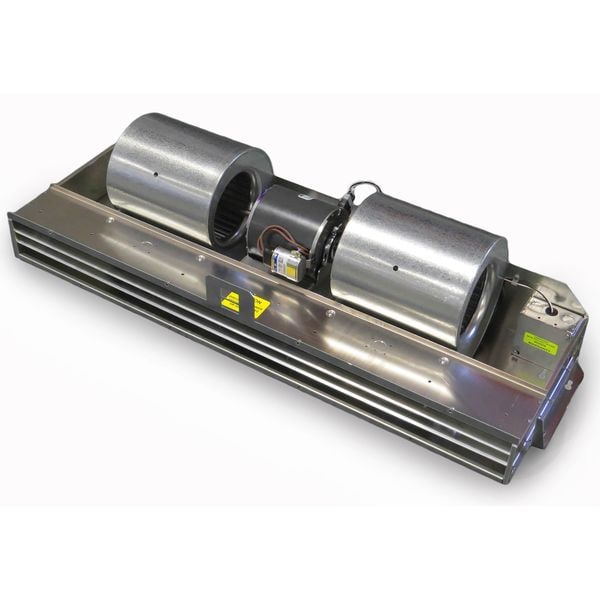

| Number of Motors | 1 |
| Height | 14-3/4 in |
| Air Curtain Air Velocity | 3,500 fpm |
| Voltage | 208 V |
| Air Curtain Air Volume | 1,882 cfm |
| Air Curtain Max. Door Width | 4 ft |
| Air Curtain dBA @ 10 Feet | 67 dBA |
| Depth | 14-1/4 in |
| Air Curtain Heated | Yes |
| Air Curtain Housing Material | Aluminum |
| Hz | 60 |
| Housing Color | White |
| Number of Speeds | 3 |
| Motor HP | 0.5 |
| Max. Amps | 31.3 |
| Motor Type | Permanent Split Capacitor |
| Standards | AMCA Certified, ASHRAE Standard 90.1-2019, IECC |
| Max. RPM | 1,750 |
| Includes | (3) Speed Motor with Factory Mounted Wired Fan and Heat Selector Switch, 24V Magnetic Reed Door Limit Swtich, 24V Thermostat, 24V Transformer, Adjustable Time Delay |
| Heating kW | 10 kW |
| Air Curtain Item | Air Curtain |
| Requires | Hard Wiring |
| Motor Enclosure | Open Dripproof |
| Overall Width | 51 in |
| Overall Height | 14 in |
| Control Type | Hard Wiring |
| Overall Depth | 15 in |
| Finish | Powder Coated |
| Housing Material | Aluminum |
| Minimum Operating Temperature | Not Available |
| Mounting Height for Insect Control | 8 ft |
| For Outdoor Use | No |
| Power Cord Length | Not Available |
| Air Temperature Rise | 18 deg F |
| Maximum Speed | 1,750 rpm |
| Maximum Air Volume | 1,718 cfm |
| Frequency | 60 Hz |
| Maximum Operating Temperature | Not Available |

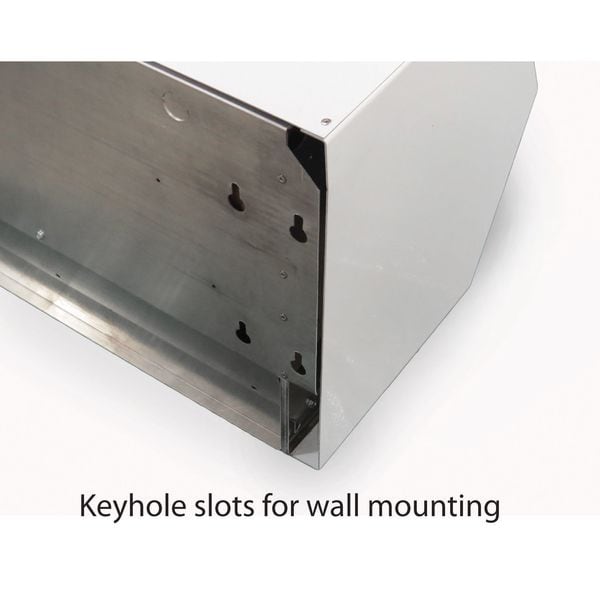

| Mounting Hole Diameter | 3/4 in |
| Nameplate Voltage | 208 V AC |
| Electrical Connection | Hardwired |
| Washdown | No |
| Maximum Air Velocity | 3,614 fpm |
| Mounting Height for Temperature Control | 10 ft |
| Power Consumption | 10 kW |
| Profile Type | Standard Profile |
| Heat Source | Electric |
| Assembly | Not Available |
| Sound Level @ 10 ft | 66 dBA |
| Ultraviolet Air Cleaning | No |
| Heated/Not Heated | Heated |
| HEPA Air Cleaning | No |
| For Frame Opening Width | 4 ft |
| Heater Power Consumption | 10 kW |
| Includes Mounting Fasteners | No |
| Full Load Current | 31.3 A |
| Grille Material | Steel |
| Sanitation Certified | No |
| Series | CHD10 |
| Nozzle Width | 48 in |
| Motor Horsepower per Motor | 0.5 HP |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
