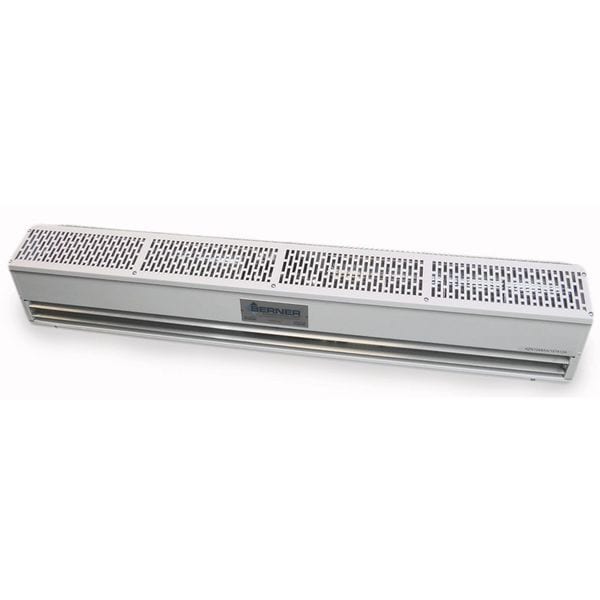

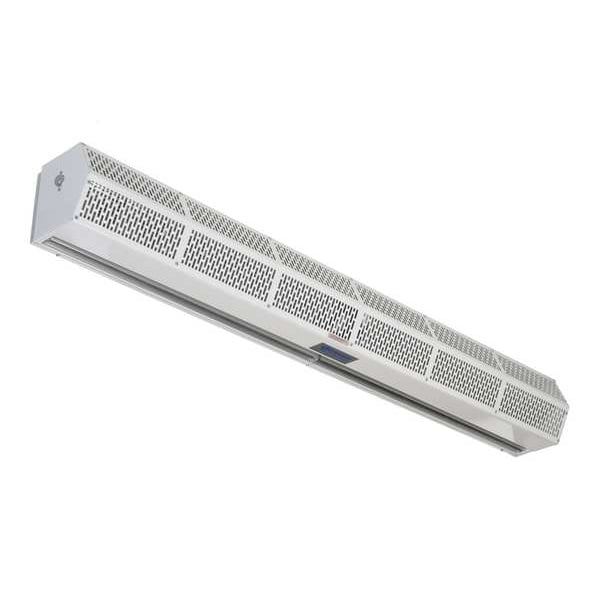

Low Profile Air Curtain, 8 In. D, 1360 cfm
| Item | Unhtd 8.5"H 48"W 8.5"D Alum Air Curtain |
|---|---|
| Width | 48-7/8 in |
| Phase | 1 |
| Max. Mounting Height | 7 ft |
| Air Curtain Finish | Powder Coated |
| Number of Motors | 1 |
| Height | 8-1/2 in |
| Air Curtain Air Velocity | 3,300 fpm |
| Voltage | 115/208-240 |
| Air Curtain Air Volume | 1,360 cfm |
| Air Curtain Max. Door Width | 4 ft |
| Air Curtain dBA @ 10 Feet | 54 dBA |
| Depth | 8 in |
| Air Curtain Heated | No |
| Air Curtain Housing Material | Steel |
| Hz | 60 |
| Standards | ANSI/NSF 37, EPH Listed, UL Listed |
| Requires | Hard Wiring |
| Motor Enclosure | Totally Enclosed |
| Motor HP | 0.2 |
| Includes | Door Limit Switch, Plunger Style for Automatic Operation |
| Housing Color | White |
| Max. RPM | 1,680 |
| Max. Amps | 3.4/1.7 to 1.7 |
| Motor Type | Permanent Split Capacitor |
| Air Curtain Item | Low Profile Air Curtain |
| Number of Speeds | 1 |
| Control Type | Activation Switch |
| Overall Height | 8-1/2 in |
| Overall Depth | 8-1/2 in |
| Overall Width | 48 in |
| Finish | Powder Coated |
| Housing Material | Aluminum |
| Nameplate Voltage | 120/208-240V AC |
| Power Cord Length | Not Available |
| For Outdoor Use | Yes |
| Minimum Operating Temperature | Not Available |
| Maximum Air Velocity | 3,274 fpm |
| Heater Power Consumption | Not Applicable |
| HEPA Air Cleaning | No |
| Full Load Current | 3.4/1.7 A |
| Mounting Hole Diameter | Not Available |
| Mounting Height for Insect Control | 7 ft |
| Profile Type | Low Profile |
| Maximum Air Volume | 1,360 cfm |
| Includes Mounting Fasteners | Not Available |
| Sound Level @ 10 ft | 54 dBA |
| Washdown | No |
| Power Consumption | 0.32 kW |
| Mounting Height for Temperature Control | 7 ft |
| Frequency | 60 Hz |
| Grille Material | Aluminum |
| Motor Horsepower per Motor | 0.2 HP |
| Nozzle Width | 46-5/8 in |
| Electrical Connection | Hardwired |
| Maximum Speed | 1,680 rpm |
| Assembly | Not Available |
| Heated/Not Heated | Not Heated |
| For Frame Opening Width | 4 ft |
| Series | SLC07 |
| Maximum Operating Temperature | Not Available |
| Ultraviolet Air Cleaning | No |
| Sanitation Certified | Yes |
| Air Temperature Rise | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
