Mounitng Heights

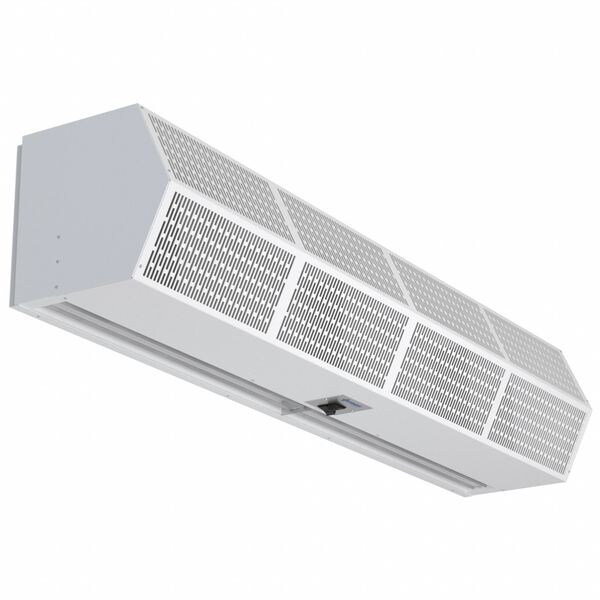

| Item | Unhtd 14"H 75"W 15"D Galv St Air Curtain |
|---|---|
| Phase | 1 |
| Number of Motors | 2 |
| Control Type | Activation Switch |
| Finish | Powder Coated |
| Housing Color | White |
| Motor Enclosure | Open Dripproof |
| Includes | 24V Magnetic Reed Door Limit Swtich, 24V Transformer, Adjustable Time Delay, Factory Mounted Wired Fan Speed Switch |
| Overall Height | 14 in |
| Number of Speeds | 3 |
| Housing Material | Aluminum |
| Overall Width | 75 in |
| Overall Depth | 14-1/2 in |
| Standards | cULus |
| Motor Type | Permanent Split Capacitor |
| Maximum Air Volume | 3,608 cfm |
| Sanitation Certified | No |
| Motor Horsepower per Motor | 0.5 HP |
| Nozzle Width | 72 in |
| For Frame Opening Width | 6 ft |
| Heat Source | Electric |
| Frequency | 60 Hz |
| Maximum Air Velocity | 2,062 fpm |
| Power Consumption | 1.56 kW |
| Ultraviolet Air Cleaning | No |
| Series | CHD10 |
| Heated/Not Heated | Not Heated |
| Heater Power Consumption | Not Applicable |
| HEPA Air Cleaning | No |
| Grille Material | Aluminum |
| Mounting Height for Temperature Control | 10 ft |
| Sound Level @ 10 ft | 69 dBA |
| Nameplate Voltage | 240 V AC |
| Profile Type | Standard Profile |
| Washdown | No |
| Mounting Height for Insect Control | 8 ft |
| Full Load Current | 7 A |
| For Outdoor Use | No |
| Mounting Hole Diameter | Not Applicable |
| Electrical Connection | Hardwired |
| Drive Type | Direct Drive |
| Assembly | Unassembled |
| Maximum Speed | 1,680 rpm |
| Air Temperature Rise | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
