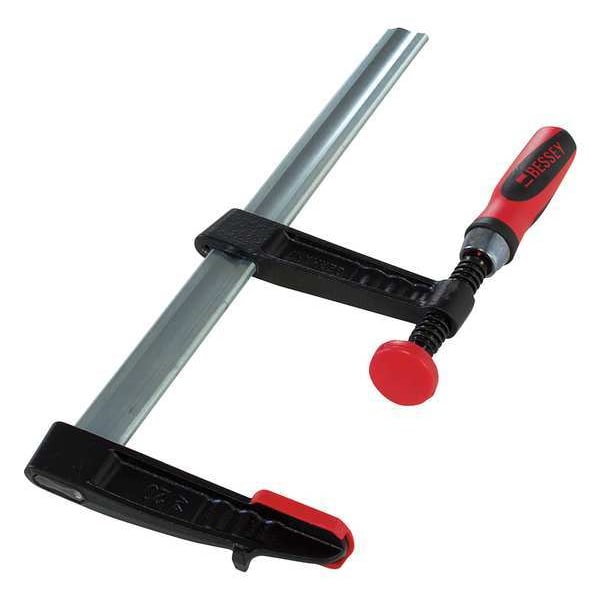

12 in Bar Clamp, Composite Plastic Handle and 4 in Throat Depth
| Handle Material | Composite Plastic |
|---|---|
| Throat Depth (In.) | 4 |
| Width | 7 in |
| Application | Woodworking |
| Includes | Clamp Anvil, Ergonomic Handle, Plastic Protective Pads |
| Width (In.) | 7 |
| Swivel Type | Replaceable |
| Clamping Surface W (In.) | 1-7/64 |
| Max. Jaw Opening (In.) | 12 |
| Type | Light Duty TGJ2 |
| Opening (In.) | 12 |
| Screw Size (In.) | 5/8 |
| Handle Length (In.) | 4-1/4 |
| Nominal Rail Size (In.) | 1-9/64 |
| Bar Width (In.) | 1-9/64 |
| Clamp Face (In.) | 1-7/64 |
| Bar Thickness (In.) | 25/64 |
| Swivel Pad (In.) | 1-1/4 |
| Bar Material | Steel |
| Item | Bar Clamp |
| Pad Type | Standard |
| Nominal Clamping Pressure | 880 lb |
| Bar Size (In.) | 1 5/32 in |
| Spindle Dia. (In.) | 5/8 |
| Clamping Surface D (In.) | 1-3/4 |
| Function | Clamp |
| Jaw Pad Width | 1-1/4 in |
| Overall Width3 | 7 in |
| Spindle Diameter1 | 5/8 in |
| Bar Type | Rail |
| Jaw Pad Type | Swivel |
| Handle Length | 4-1/4 in |
| Bar Width | 1-3/16 in |
| Bar Thickness | 7/16 in |
| Handle Style | Screwdriver |
| Clamping Capacity1 | 12 in |
| Sliding Mechanism | Bar Slide |
| Throat Depth1 | 4 in |
| Clamping Force1 | 880 lb |
| Package Quantity | 1 |
