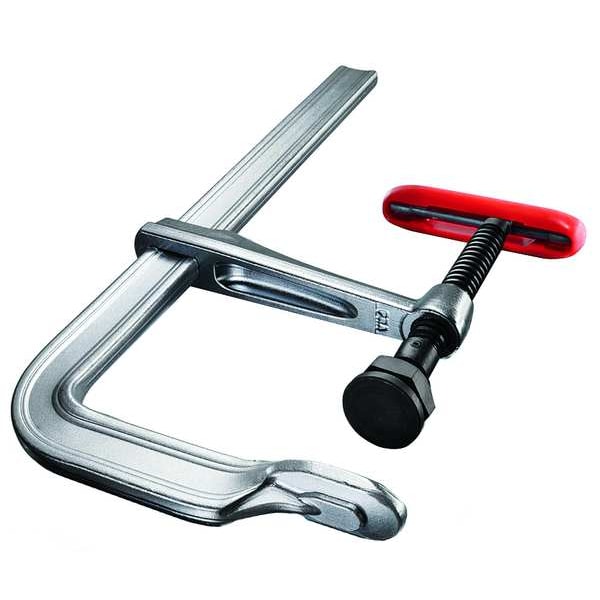

12 in Bar Clamp, Plastic, Steel Handle and 5 1/2 in Throat Depth
| Handle Material | Plastic, Steel |
|---|---|
| Throat Depth (In.) | 5-1/2 |
| Application | Industrial |
| Includes | Ergonomic Grip |
| Handle Length (In.) | 4-5/8 |
| Screw Size (In.) | 25/32 |
| Swivel Pad (In.) | 1-1/2 |
| Nominal Rail Size (In.) | 1-11/32 x 1/2 |
| Spindle Dia. (In.) | 25/32 |
| Item | Bar Clamp |
| Bar Material | Steel |
| Pad Type | Swivel Morpad |
| Clamp Face (In.) | 1 1/4 x 2 3/8 |
| Opening (In.) | 12 |
| Nominal Clamping Pressure | 2,800 lb |
| Load Capacity (Lb.) | 2,800 |
| Swivel Type | Removable |
| Type | Regular Duty, S Series |
| Max. Jaw Opening (In.) | 12 |
| Function | Clamp |
| Clamping Capacity1 | 12 in |
| Jaw Pad Width | 1-1/2 in |
| Jaw Pad Type | Swivel |
| Handle Length | 4-5/8 in |
| Spindle Diameter1 | 13/16 in |
| Sliding Mechanism | Bar Slide |
| Bar Type | Rail |
| Spindle Material1 | High Carbon |
| Bar Thickness | 1-3/8 in |
| Handle Style | Sliding T |
| Throat Depth1 | 5-1/2 in |
| Clamping Force1 | 2,800 lb |
| Spindle Finish1 | Spatter-Resistant |
| Package Quantity | 1 |
