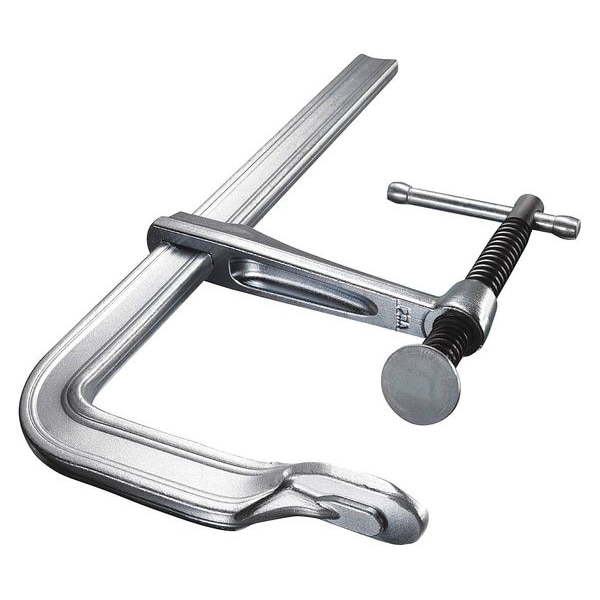

12 in Bar Clamp, Steel Handle and 5 1/2 in Throat Depth
| Handle Material | Steel |
|---|---|
| Throat Depth (In.) | 5-1/2 |
| Width | 7-3/4 in |
| Application | Industrial |
| Includes | Patented Rail Profile, Replaceable Swivel Pad |
| Width (In.) | 7-3/4 |
| Opening (In.) | 12 |
| Swivel Pad (In.) | 1-1/2 |
| Handle Length (In.) | 4-5/8 |
| Clamping Surface W (In.) | 1-1/2 |
| Item | Bar Clamp |
| Clamping Surface D (In.) | 1-1/2 |
| Bar Size (In.) | 1 3/32 in |
| Pad Type | Smooth |
| Type | Light to Medium Duty, F-Style Sliding Arm |
| Nominal Rail Size (In.) | 1-3/32 x 7/16 |
| Nominal Clamping Pressure | 1,320 |
| Swivel Type | Standard |
| Clamp Face (In.) | 1-1/2 |
| Bar Material | Steel |
| Screw Size (In.) | 25/32 |
| Bar Thickness (In.) | 7/16 |
| Bar Width (In.) | 1-3/32 |
| Max. Jaw Opening (In.) | 12 |
| Spindle Dia. (In.) | 45/64 |
| Bar Thickness | 7/16 in |
| Bar Width | 1-1/8 in |
| Handle Length | 4-5/8 in |
| Jaw Pad Width | 1-1/2 in |
| Jaw Pad Type | Standard |
| Clamping Capacity1 | 12 in |
| Spindle Diameter1 | 3/4 in |
| Throat Depth1 | 5-1/2 in |
| Clamping Force1 | 1,320 lb |
| Overall Width3 | 7-3/4 in |
| Sliding Mechanism | Bar Slide |
| Package Quantity | 1 |
