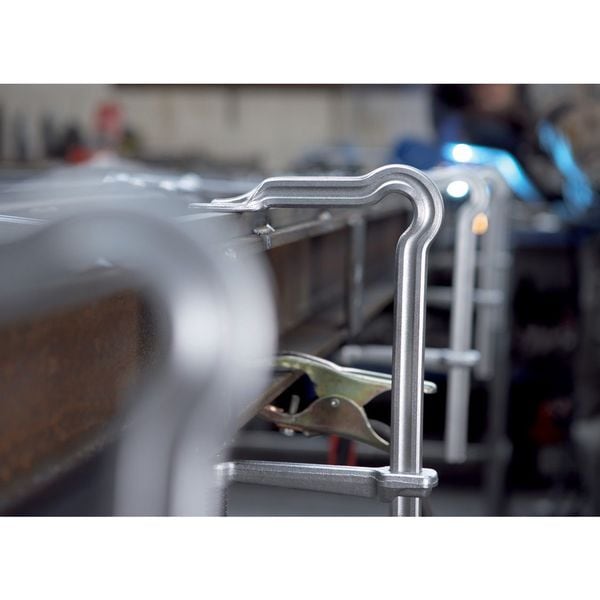

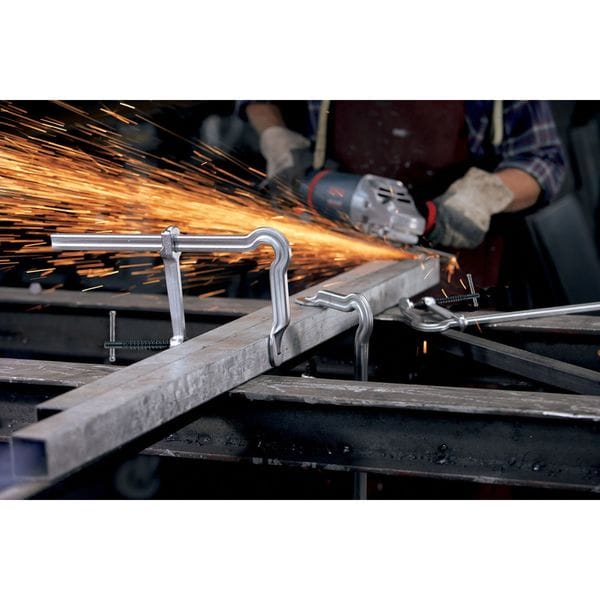

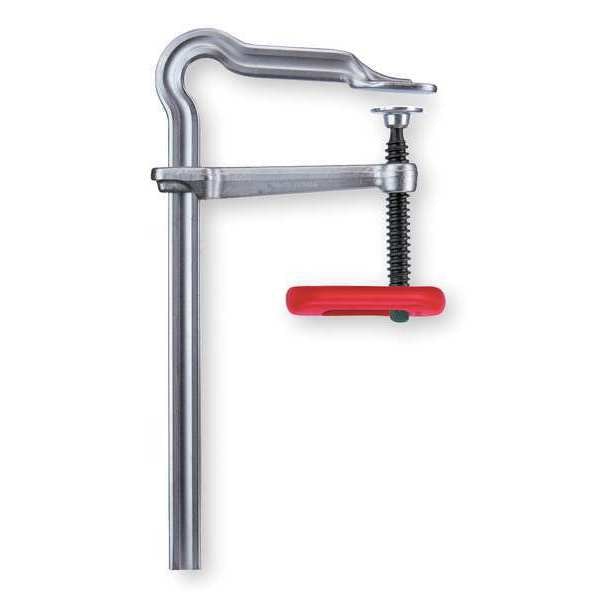

12 in Bar Clamp, Steel Handle and 5 1/2 in Throat Depth
| Handle Material | Steel |
|---|---|
| Throat Depth (In.) | 5-1/2 |
| Application | Industrial |
| Includes | Ergonomic Grip |
| Bar Material | Steel |
| Clamp Face (In.) | 1 1/8 x 2 |
| Load Capacity (Lb.) | 1,100 |
| Type | MaxFlex Anti-Vibration Cross Over w/Ergonomic Grip |
| Swivel Type | Snap On |
| Handle Length (In.) | 4 |
| Nominal Rail Size (In.) | 63/64 x 15/32 |
| Item | Bar Clamp |
| Max. Jaw Opening (In.) | 12 |
| Swivel Pad (In.) | 1-1/2 |
| Spindle Dia. (In.) | 45/64 |
| Pad Type | Swivel |
| Screw Size (In.) | 45/64 |
| Nominal Clamping Pressure | 1,100 lb |
| Opening (In.) | 12 |
| Sliding Mechanism | Bar Slide |
| Clamping Force1 | 1,100 lb |
| Jaw Pad Type | Standard |
| Throat Depth1 | 5-1/2 in |
| Jaw Pad Width | 1-1/2 in |
| Spindle Diameter1 | 3/4 in |
| Clamping Capacity1 | 12 in |
| Handle Length | 4 in |
| Package Quantity | 1 |
