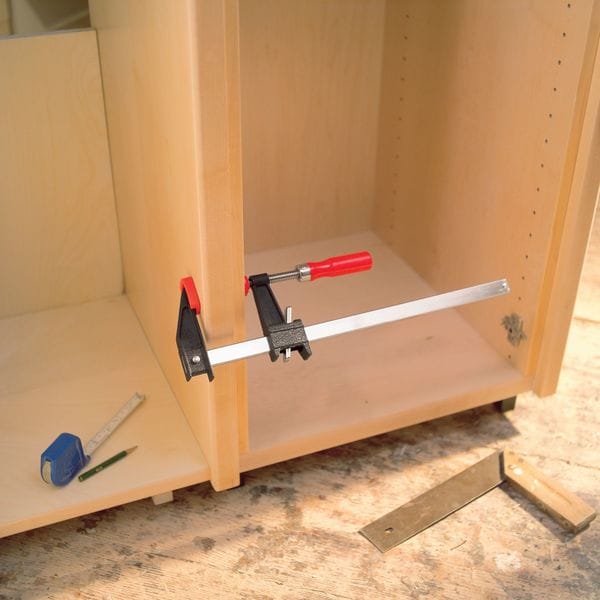

12 in Bar Clamp, Wood Handle and 5 in Throat Depth
| Handle Material | Wood |
|---|---|
| Throat Depth (In.) | 5 |
| Application | Assembly, Construction, General Purpose Clamping, Gluing, Maintenance |
| Includes | Removable Plastic Jaw Caps |
| Max. Jaw Opening (In.) | 12 |
| Bar Material | Nickel-Plated Drawn Steel |
| Clamp Face (In.) | 1-7/16 x 1-13/16 |
| Swivel Type | Replaceable |
| Nominal Rail Size (In.) | 1-1/4 x 3/8 |
| Type | Clutch Style |
| Load Capacity (Lb.) | 1,200 |
| Clamping Surface D (In.) | 1-7/16 |
| Handle Length (In.) | 4-15/16 |
| Nominal Clamping Pressure | 1,200 |
| Clamping Surface W (In.) | 1-7/8 |
| Bar Size (In.) | 1 1/8 in |
| Pad Type | Non-Marring, Swivel on Anvil Surface |
| Screw Size (In.) | 0.545 |
| Bar Thickness (In.) | 1-1/4 |
| Swivel Pad (In.) | 1-1/4 |
| Item | Bar Clamp |
| Spindle Dia. (In.) | 0.545 |
| Opening (In.) | 12 |
| Bar Width (In.) | 3/8 |
| Throat Depth1 | 5 in |
| Sliding Mechanism | Clutch |
| Spindle Diameter1 | 9/16 in |
| Jaw Pad Type | Non-Marring |
| Bar Thickness | 1-1/4 in |
| Clamping Capacity1 | 12 in |
| Bar Width | 3/8 in |
| Jaw Pad Width | 1-1/4 in |
| Handle Length | 4-15/16 in |
| Clamping Force1 | 1,200 lb |
| Package Quantity | 1 |
