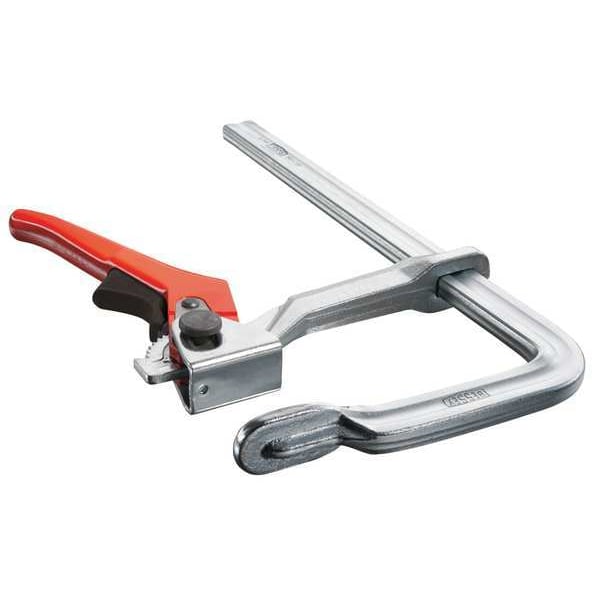

20 in Bar Clamp, Steel Handle and 4 3/4 in Throat Depth
| Handle Material | Steel |
|---|---|
| Throat Depth (In.) | 4-3/4 |
| Width | 6 in |
| Application | Assembly, Fabricating, General Workholding, Repair |
| Width (In.) | 6 |
| Clamping Surface D (In.) | 1-5/8 |
| Max. Jaw Opening (In.) | 20 |
| Bar Thickness (In.) | 1-7/64 |
| Opening (In.) | 20 |
| Bar Material | Steel |
| Clamping Surface W (In.) | 1 |
| Handle Length (In.) | 6 |
| Nominal Rail Size (In.) | 1-7/64 x 7/16 |
| Bar Width (In.) | 7/16 |
| Pad Type | Pivoting |
| Load Capacity (Lb.) | 1,200 |
| Nominal Clamping Pressure | 1,200 lb |
| Clamp Face (In.) | 1-5/8 x 1 |
| Type | Rapid-Action Lever bar Clamps |
| Item | Bar Clamp |
| Function | Clamp |
| Spindle Finish1 | Powder Coated |
| Sliding Mechanism | Bar Slide |
| Handle Style | Lever |
| Jaw Pad Type | Pivoting |
| Clamping Capacity1 | 20 in |
| Bar Width | 7/16 in |
| Bar Thickness | 1-1/8 in |
| Clamping Force1 | 1,200 lb |
| Bar Type | Rail |
| Overall Width3 | 6 in |
| Handle Length | 6 in |
| Throat Depth1 | 4-3/4 in |
| Package Quantity | 1 |
