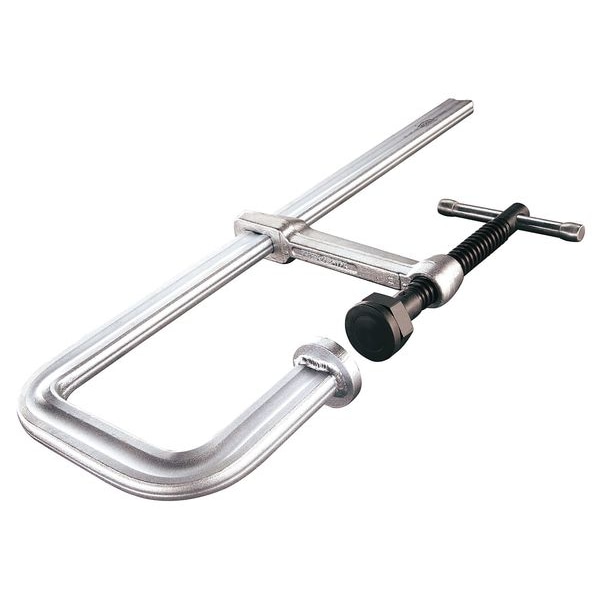

20 in Bar Clamp, Steel Handle and 7 in Throat Depth
| Handle Material | Steel |
|---|---|
| Throat Depth (In.) | 7 |
| Width | 10-13/32 in |
| Application | Welding and Fabrication |
| Width (In.) | 10-13/32 |
| Bar Size (In.) | 1 37/64 in |
| Clamp Face (In.) | 1-1/2 |
| Screw Size (In.) | 25/32 |
| Clamping Surface W (In.) | 1-1/2 |
| Spindle Dia. (In.) | 55/64 |
| Bar Width (In.) | 1-37/64 |
| Pad Type | Smooth |
| Item | Bar Clamp |
| Nominal Clamping Pressure | 4,880 |
| Swivel Pad (In.) | 1-1/2 |
| Bar Thickness (In.) | 25/32 |
| Clamping Surface D (In.) | 1-1/2 |
| Max. Jaw Opening (In.) | 20 |
| Opening (In.) | 20 |
| Handle Length (In.) | 4-5/8 |
| Swivel Type | Swivel |
| Nominal Rail Size (In.) | 1-37/64 x 25/32 |
| Type | Heavy Duty 4800J Series |
| Bar Material | Steel |
| Function | Clamp |
| Clamping Force1 | 4,880 lb |
| Clamping Capacity1 | 20 in |
| Spindle Diameter1 | 7/8 in |
| Jaw Pad Width | 1-1/2 in |
| Sliding Mechanism | Bar Slide |
| Step-Over | 6 in |
| Bar Thickness | 1-5/8 in |
| Bar Type | Rail |
| Handle Style | Sliding T |
| Spindle Finish1 | Spatter-Resistant |
| Bar Width | 1-5/8 in |
| Jaw Pad Type | Swivel |
| Throat Depth1 | 7 in |
| Spindle Material1 | High Carbon |
| Overall Width3 | 10-7/16 in |
| Handle Length | 4-5/8 in |
| Package Quantity | 1 |
