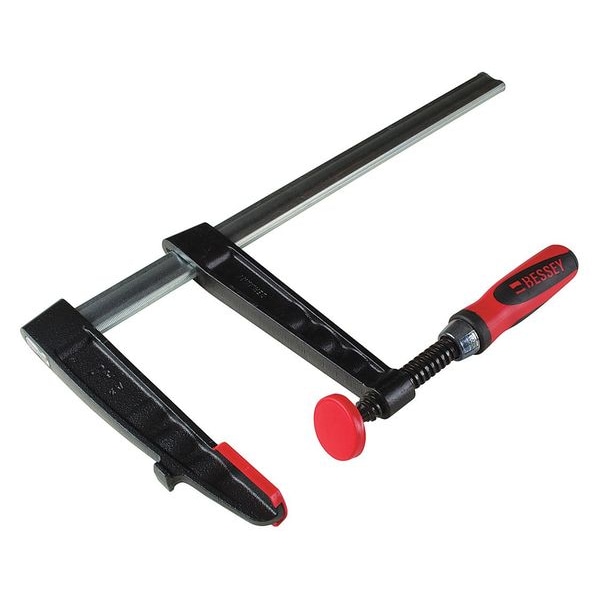

24 in Bar Clamp, Composite Plastic Handle and 7 in Throat Depth
| Handle Material | Composite Plastic |
|---|---|
| Throat Depth (In.) | 7 |
| Width | 9-15/32 in |
| Application | Woodworking |
| Includes | 2K Composite Handle with a Comfort Insert |
| Width (In.) | 9-15/32 |
| Clamp Face (In.) | 1-17/64 |
| Swivel Pad (In.) | 1-1/2 |
| Swivel Type | Standard |
| Bar Material | Steel |
| Bar Thickness (In.) | 25/64 |
| Nominal Rail Size (In.) | 1-1/4 x 25/64 |
| Bar Size (In.) | 1 1/4 in |
| Bar Width (In.) | 1-1/4 |
| Clamping Surface D (In.) | 1-17/64 |
| Spindle Dia. (In.) | 45/64 |
| Nominal Clamping Pressure | 1,320 |
| Max. Jaw Opening (In.) | 24 |
| Pad Type | Replaceable, Swivel |
| Handle Length (In.) | 4-1/4 |
| Opening (In.) | 24 |
| Screw Size (In.) | 45/64 |
| Clamping Surface W (In.) | 1-17/64 |
| Item | Bar Clamp |
| Type | Medium Duty TG |
| Function | Clamp |
| Handle Length | 4-1/4 in |
| Spindle Diameter1 | 3/4 in |
| Clamping Capacity1 | 24 in |
| Bar Type | Rail |
| Sliding Mechanism | Bar Slide |
| Overall Width3 | 9-1/2 in |
| Handle Style | Screwdriver |
| Jaw Pad Width | 1-1/2 in |
| Bar Thickness | 7/16 in |
| Bar Width | 1-1/4 in |
| Clamping Force1 | 1,320 lb |
| Jaw Pad Type | Swivel |
| Throat Depth1 | 7 in |
| Package Quantity | 1 |
