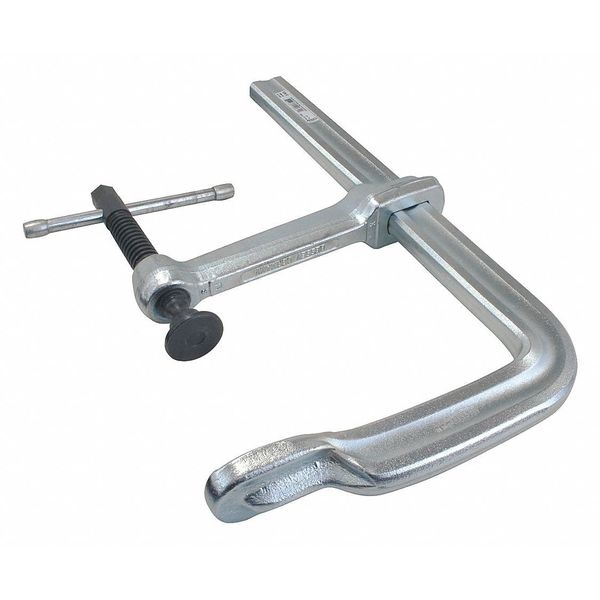

24 in Bar Clamp, Forged Steel Handle and 7 in Throat Depth
| Handle Material | Forged Steel |
|---|---|
| Throat Depth (In.) | 7 |
| Application | Industrial |
| Swivel Type | Replaceable |
| Spindle Dia. (In.) | 0.85 |
| Max. Jaw Opening (In.) | 24 |
| Opening (In.) | 24 |
| Bar Material | Steel |
| Nominal Rail Size (In.) | 1-37/64 x 25/32 |
| Type | Heavy Duty STB Series |
| Nominal Clamping Pressure | 4,880 lb |
| Item | Bar Clamp |
| Pad Type | Standard |
| Function | Clamp |
| Clamping Force1 | 4,880 lb |
| Jaw Pad Type | Swivel |
| Spindle Material1 | High Carbon |
| Sliding Mechanism | Bar Slide |
| Handle Style | Sliding T |
| Spindle Finish1 | Spatter-Resistant |
| Clamping Capacity1 | 24 in |
| Throat Depth1 | 7 in |
| Spindle Diameter1 | 7/8 in |
| Bar Type | Rail |
| Bar Thickness | 1-5/8 in |
| Package Quantity | 1 |
