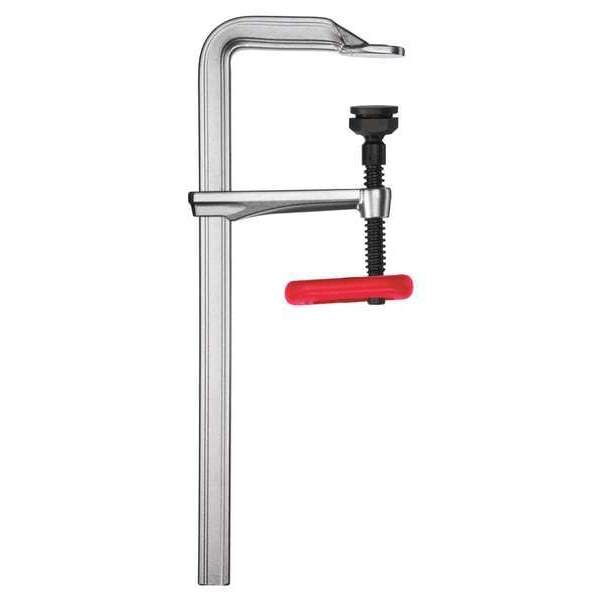

24 in Bar Clamp, Plastic, Steel Handle and 4 3/4 in Throat Depth
| Handle Material | Plastic, Steel |
|---|---|
| Throat Depth (In.) | 4-3/4 |
| Width | 1 in |
| Application | Industrial |
| Includes | Patented Rail Profile, MorPad, ergonomic Bessy(R) Grip |
| Width (In.) | 1 |
| Spindle Dia. (In.) | 3/4 |
| Swivel Pad (In.) | 1-1/2 |
| Clamping Surface D (In.) | 1-1/2 |
| Max. Jaw Opening (In.) | 24 |
| Bar Thickness (In.) | 1-3/32 |
| Handle Length (In.) | 4-1/2 |
| Bar Width (In.) | 7/16 |
| Bar Material | Steel |
| Item | Bar Clamp |
| Pad Type | Swivel Morpad, Tilts 35 Degrees |
| Clamp Face (In.) | 1-1/2 x 1 |
| Screw Size (In.) | 3/4 |
| Clamping Surface W (In.) | 1-1/2 |
| Type | F-Style, Regular Duty, S Series |
| Nominal Clamping Pressure | 1,980 lb |
| Swivel Type | Removable |
| Nominal Rail Size (In.) | 1-3/32 x 7/16 |
| Opening (In.) | 24 |
| Load Capacity (Lb.) | 1,980 |
| Bar Size (In.) | 7/16 in |
| Bar Width | 7/16 in |
| Jaw Pad Width | 1-1/2 in |
| Throat Depth1 | 4-3/4 in |
| Clamping Force1 | 1,980 lb |
| Handle Length | 4-1/2 in |
| Clamping Capacity1 | 24 in |
| Sliding Mechanism | Bar Slide |
| Bar Thickness | 1-1/8 in |
| Overall Width3 | 1 in |
| Jaw Pad Type | Tilts 35 Degrees |
| Spindle Diameter1 | 3/4 in |
| Package Quantity | 1 |
