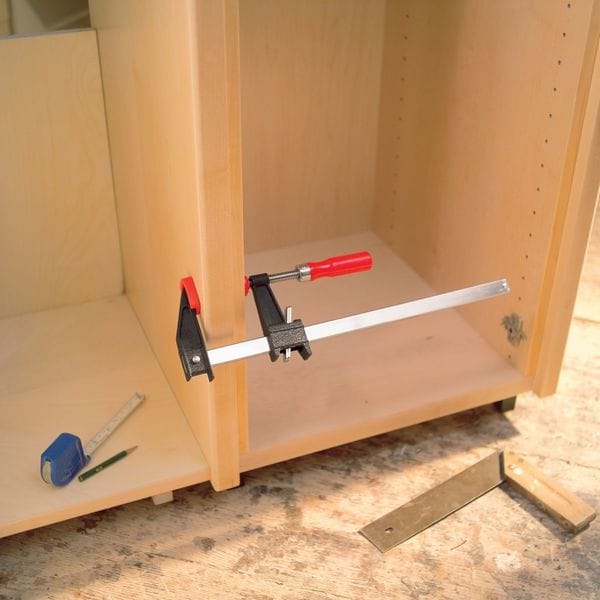

24 in Bar Clamp, Wood Handle and 3 1/2 in Throat Depth
| Handle Material | Wood |
|---|---|
| Throat Depth (In.) | 3-1/2 |
| Application | General Purpose, For Assembly, Gluing, Construction And Maintenance |
| Includes | Removable Plastic Jaw Caps |
| Bar Width (In.) | 3/8 |
| Clamp Face (In.) | 1-1/4 x 1-5/8 |
| Clamping Surface W (In.) | 1-5/8 |
| Nominal Rail Size (In.) | 1 x 3/8 |
| Bar Size (In.) | 1 3/16 in |
| Pad Type | Non-Marring, Swivel on Anvil Surface |
| Handle Length (In.) | 4-1/8 |
| Swivel Pad (In.) | 1 |
| Clamping Surface D (In.) | 1-1/4 |
| Screw Size (In.) | 0.44 |
| Max. Jaw Opening (In.) | 24 |
| Bar Material | Drawn Steel Serrated Rail, Nickel-Plated |
| Spindle Dia. (In.) | 0.44 |
| Bar Thickness (In.) | 1 |
| Item | Bar Clamp |
| Type | Clutch Style |
| Swivel Type | Replaceable |
| Nominal Clamping Pressure | 1,000 |
| Load Capacity (Lb.) | 1,100 |
| Opening (In.) | 24 |
| Bar Width | 3/8 in |
| Bar Thickness | 1 in |
| Spindle Diameter1 | 1/2 in |
| Jaw Pad Type | Swivel, Non-Marring, on Anvil Surface |
| Handle Length | 4-1/8 in |
| Throat Depth1 | 3-1/2 in |
| Package Quantity | 1 |
