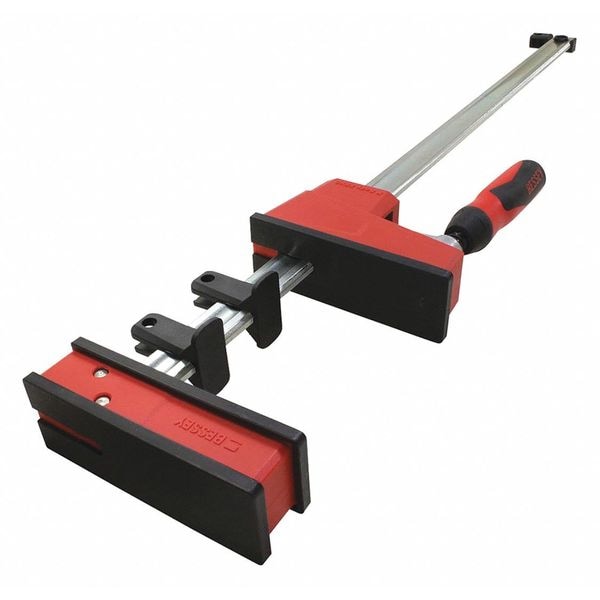

31 in Bar Clamp, Plastic Handle and 3 3/4 in Throat Depth
| Handle Material | Plastic |
|---|---|
| Throat Depth (In.) | 3-3/4 |
| Width | 5-3/4 in |
| Application | General Purpose Clamping, Woodworking |
| Width (In.) | 5-3/4 |
| Clamping Surface D (In.) | 3-3/4 |
| Screw Size (In.) | 5/8 |
| Bar Material | Cold Drawn Steel |
| Bar Size (In.) | 1 9/64 in |
| Type | K Body Revolution |
| Item | Bar Clamp |
| Handle Length (In.) | 5 |
| Bar Width (In.) | 1-9/64 |
| Spindle Dia. (In.) | 5/8 |
| Nominal Rail Size (In.) | 1-9/64 x 23/64 |
| Pad Type | Flat |
| Bar Thickness (In.) | 23/64 |
| Max. Jaw Opening (In.) | 31 |
| Nominal Clamping Pressure | 1,700 |
| Opening (In.) | 31 |
| Clamp Face (In.) | 2 x 3-3/4 |
| Clamping Surface W (In.) | 2 |
| Function | Clamp |
| Handle Style | Screwdriver |
| Handle Length | 5 in |
| Bar Width | 1-3/16 in |
| Jaw Pad Type | Static |
| Throat Depth1 | 3-3/4 in |
| Spreading Capacity - Maximum | 36-1/2 in |
| Bar Type | Rail |
| Clamping Force1 | 1,700 lb |
| Overall Width3 | 5-3/4 in |
| Bar Thickness | 3/8 in |
| Spreading Capacity - Minimum | 10-1/2 in |
| Sliding Mechanism | Bar Slide |
| Clamping Capacity1 | 31 in |
| Spindle Diameter1 | 5/8 in |
| Package Quantity | 1 |
