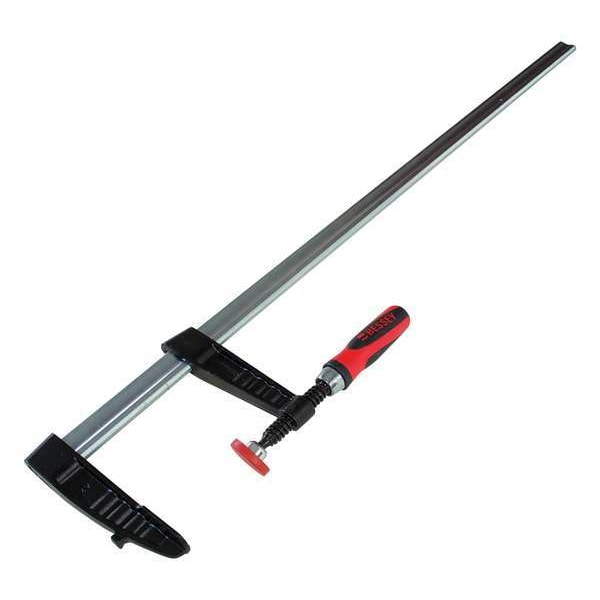

50 in Bar Clamp, Composite Plastic Handle and 4 1/2 in Throat Depth
| Handle Material | Composite Plastic |
|---|---|
| Throat Depth (In.) | 4-1/2 |
| Width | 9 in |
| Application | Woodworking |
| Includes | Clamp Anvil, Ergonomic Handle, Plastic Protective Pads |
| Width (In.) | 9 |
| Clamping Surface W (In.) | 1-17/64 |
| Nominal Clamping Pressure | 1,540 lb |
| Opening (In.) | 50 |
| Type | Heavy Duty TGK |
| Spindle Dia. (In.) | 45/64 |
| Swivel Type | Replaceable |
| Nominal Rail Size (In.) | 1-3/8 |
| Bar Thickness (In.) | 7/16 |
| Item | Bar Clamp |
| Pad Type | Standard |
| Swivel Pad (In.) | 1-1/2 |
| Bar Width (In.) | 1-3/8 |
| Handle Length (In.) | 5-5/32 |
| Screw Size (In.) | 45/64 |
| Bar Material | Steel |
| Clamping Surface D (In.) | 2 |
| Clamp Face (In.) | 1-17/64 |
| Max. Jaw Opening (In.) | 50 |
| Bar Size (In.) | 1 5/16 in |
| Spindle Diameter1 | 3/4 in |
| Throat Depth1 | 4-1/2 in |
| Bar Thickness | 7/16 in |
| Jaw Pad Width | 1-1/2 in |
| Bar Width | 1-3/8 in |
| Jaw Pad Type | Standard |
| Overall Width3 | 9 in |
| Handle Length | 5-3/16 in |
| Clamping Force1 | 1,540 lb |
| Clamping Capacity1 | 50 in |
| Package Quantity | 1 |
