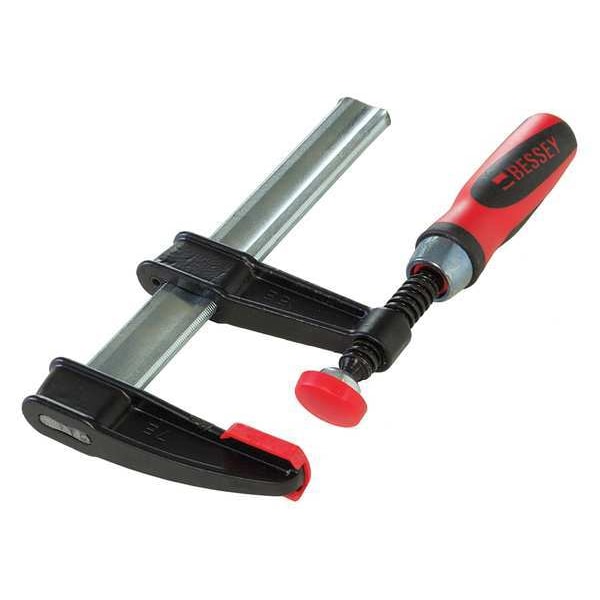

6 in Bar Clamp, Composite Plastic Handle and 2 1/2 in Throat Depth
| Handle Material | Composite Plastic |
|---|---|
| Throat Depth (In.) | 2-1/2 |
| Width | 6 in |
| Application | Woodworking |
| Includes | Clamp Anvil, Ergonomic Handle, Plastic Protective Pads |
| Width (In.) | 6 |
| Clamp Face (In.) | 45/64 |
| Screw Size (In.) | 35/64 |
| Max. Jaw Opening (In.) | 6 |
| Clamping Surface W (In.) | 49/64 |
| Bar Width (In.) | 1 |
| Nominal Rail Size (In.) | 1 |
| Item | Bar Clamp |
| Type | Light Duty TGJ2 |
| Clamping Surface D (In.) | 1-1/4 |
| Bar Material | Steel |
| Swivel Type | Replaceable |
| Bar Size (In.) | 1 5/32 in |
| Pad Type | Standard |
| Spindle Dia. (In.) | 35/64 |
| Bar Thickness (In.) | 15/64 |
| Nominal Clamping Pressure | 600 lb |
| Swivel Pad (In.) | 1 |
| Handle Length (In.) | 4-1/4 |
| Opening (In.) | 6 |
| Function | Clamp |
| Overall Width3 | 6 in |
| Throat Depth1 | 2-1/2 in |
| Bar Width | 1 in |
| Handle Style | Screwdriver |
| Jaw Pad Type | Swivel |
| Jaw Pad Width | 1 in |
| Clamping Force1 | 600 lb |
| Handle Length | 4-1/4 in |
| Bar Thickness | 1/4 in |
| Spindle Diameter1 | 9/16 in |
| Bar Type | Rail |
| Sliding Mechanism | Bar Slide |
| Clamping Capacity1 | 6 in |
| Package Quantity | 1 |
