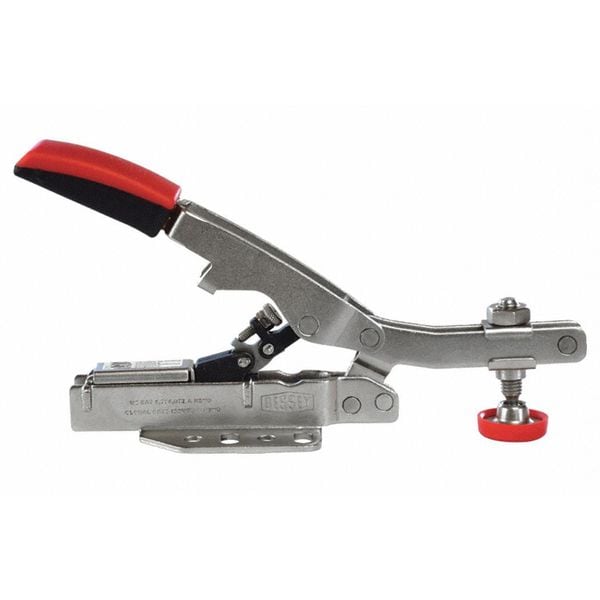

Horiz Toggle Clamp, 450 lb, 3/4 in
| Item | Auto-Adjust Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 450 |
| Overall Height (In.) | 1-3/4 |
| Body Material | Steel |
| Overall Length (In.) | 6-1/2 |
| Height Under Arm (In.) | 3/4 |
| Thread Size | M6 |
| Includes | Plastic Protective Cap |
| Construction | Formed and Welded Steel |
| Dia. (In.) | 9/16 |
| Spindle | Steel |
| Arm | Horizontal Closing/Base, U Channel |
| Handle | 2-Component, Ergonomic, Molded |
| Application | For Work Holding |
| Base Mounting Centers (In.) | 1 x 1-1/8, 1/2 x 1-1/8 |
| Overall Depth | 1-3/4 in |
| Accommodates Workpiece Variation | Yes |
| Overall Length | 6-1/2 in |
| Height Under Arm | 0.98 in |
| Handle Orientation | Horizontal |
| Base Mounting Style | Flange |
| Holding Capacity - Maximum | 450 lbf |
| Clamp Arm Opening Angle | 180 deg |
| Includes Locking Handle | No |
| Tip Material | Polyethylene |
| Arm Style | U-Bar |
| Arm Length | 1.77 in |
| Package Quantity | 1 |
