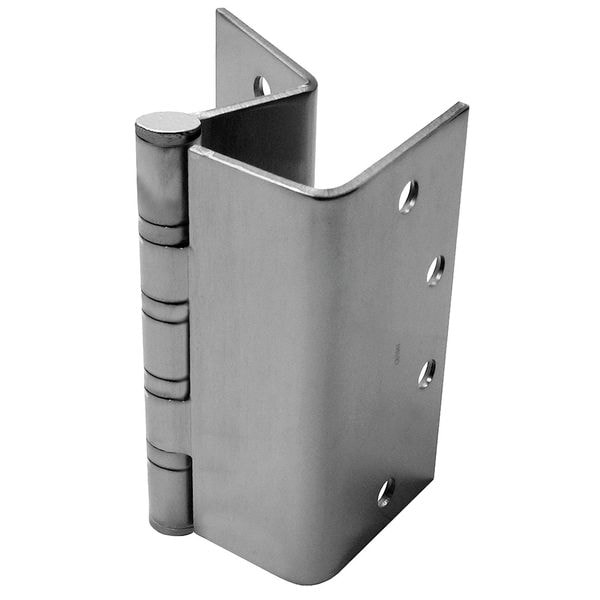

Butt Hinge, Steel, Full Mortise Mounting, 6 in Leaf W x 5 in Leaf H, Satin Chrome
| Corners | Square |
|---|---|
| Door Leaf Height | 5 in |
| Door Leaf Thickness | 0.19 in |
| Door Leaf Width | 6 in |
| Finish | Satin Chrome |
| Holes per Leaf | 4 |
| Load Capacity | 150 lb |
| Material | Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 1/4 in |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/8 in |
| Features | Consider Using a Back Plate on Full Surface and Half Surface Hinges, Non-Detachable Ball Bearings, For Corridor Doors to Patient's Rooms, Operating Rooms, Emergency Rooms, or Wherever Conditions Require a Completely Clear Opening Hospitals, Institutions or Public Buildings, For Half Mortise and Full Surface Hinges to Fit Narrow Metal Frames, Consult Factory, Hinges Can be Furnished with Hospital Tips (HT), Reversible Flush Tips and Pins |
| Standards | ANSI A156.1 |
| Pin Type | Removable |
| Pin Material | Stainless Steel |
| Overall Knuckle Height | 1 in |
| Frame Leaf Width | 6 in |
| Number of Wires | 0 |
| Holes | With |
| Frame Leaf Height | 5 in |
| Hardware | Yes |
| Item | Butt Hinge |
| Bearing Type | Ball |
| Ligature Resistant | No |
| Frame Leaf Thickness | 0.19 in |
| Overall Width | 5 in |
| Hand Orientation | Non-Handed |
| Removable Pin | Yes |
| Resistance Properties | Corrosion-Resistant |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Mounting Style | Full Mortise |
| Door Thickness - Maximum | 1-3/8 in |
| Pin Diameter | 1/4 in |
| Range of Motion - Maximum | 180 deg |
| Corner Type | Square |
| Number of Holes per Leaf | 4 |
| Includes Hardware | Hardware Included |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
