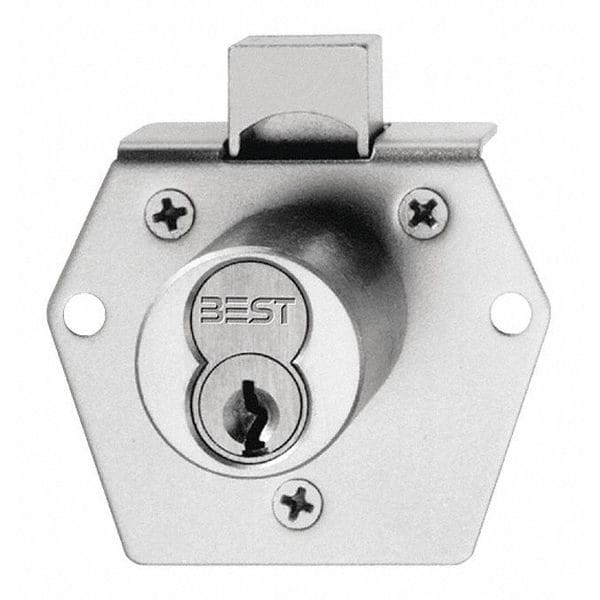

Cabinet Lock, Oil Rubbed Bronze
| Item | Interchangeable Core Cabinet and Drawer Dead Bolt Locks |
|---|---|
| Max. Latching Distance (In.) | 3/4 in |
| Mounting Hole Dia. (In.) | 3/16 |
| Opens With | Key |
| Throw Length | 1/2 in |
| For Door Thickness (In.) | 5/8" Minimum |
| Standards | ANSI/BHMA A156.11 |
| Cam Width (In.) | 1-1/8" |
| Material | Nickel Plated Zinc Case and Bolts, Stainless Steel Cover, Phosphor Bronze Spring |
| Number of Keys | 0 |
| Mounting Hardware | Included |
| Includes | Spacer, Strike |
| Finish | Oil Rubbed Bronze |
| Cam Length (In.) | 1-1/16" |
| Latch Bolt Shape | Square |
| Unlock Turn Direction | Clockwise |
| Lock Body Material | Zinc Die-Cast |
| Interchangeable Core | Yes |
| Mounting Style | Rim |
| For Material | Metal |
| Security Level | General Security |
| For Material Thickness | 1 in |
| Interchangeable Core Type | SFIC |
| Body Height | 2-1/8 in |
| Lock Orientation | Vertical |
| Series | 5L Series |
| Distance Between Mounting Holes | 2 3/16 in |
| Includes Interchangeable Core Lock Core | No |
| Cylinder Diameter | 1 1/8 in |
| Number of Mounting Holes | 2 |
| Mounting Hole Dia. | 1-1/8 in |
| Mounting Hardware Required | Yes |
| Key Retaining | No |
| Cabinet Lock Type | Interchangeable Core Cabinet and Drawer Dead Bolt Locks |
| Body Width | 1-7/8 in |
| Compatible Cylinder Brand | BEST |
| Body Thickness | 1 5/8 in |
| Latch Bolt Projection | 9/32 in |
| Lock Body Finish | Brass |
| Lock Body Color | Black |
| Rear Projection | 3/4 in |
| Unlocking Radius | Quarter-turn |
| Lock Body Shape | Diamond |
| Keying | Coreless |
| Includes Mounting Hardware | Yes |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
