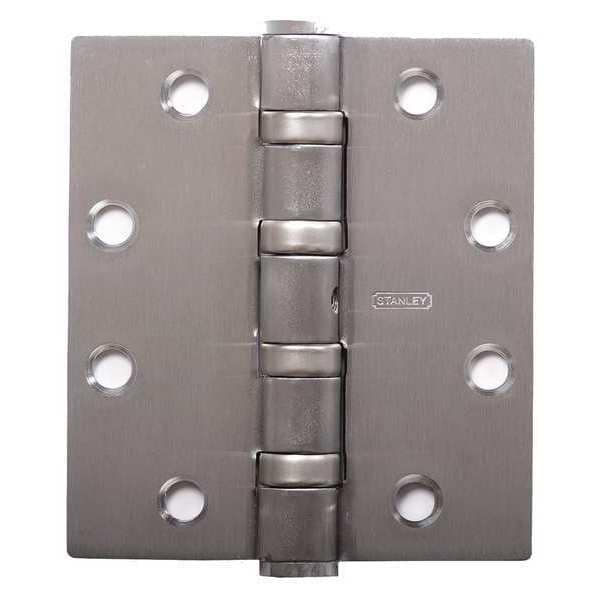

Door and Butt Hinge, Brass, Bronze, Full Mortise Mounting, 1 1/2 in Leaf W x 4 1/2 in Leaf H
| Corners | Square |
|---|---|
| Door Leaf Height | 4-1/2 in |
| Door Leaf Thickness | 0.18 in |
| Door Leaf Width | 2 in |
| Finish | Satin Chrome |
| Holes per Leaf | 4 |
| Load Capacity | 150 lb |
| Material | Brass, Bronze |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 5/16 in |
| Range of Motion | 270 deg |
| Required Door Thickness | 1-3/8 in to 3 in |
| Features | Template Screw Hole Location, Non-Detachable Ball Bearings, For Use On Heavy Doors, Reversible Flush Tips and Pins |
| Frame Leaf Thickness | 0.18 in |
| Item | Door and Butt Hinge |
| Bearing Type | Ball |
| Hinge Number | #1 |
| Ligature Resistant | No |
| Hardware | Yes |
| Holes | With |
| Overall Knuckle Height | 7/16 in |
| Pin Material | Stainless Steel |
| Standards | ANSI, BHMA |
| Pin Type | Non-Removable |
| Number of Wires | 0 |
| Frame Leaf Height | 4-1/2 in |
| Frame Leaf Width | 1-1/2 in |
| Overall Width | 4-1/2 in |
| Hand Orientation | Non-Handed |
| Range of Motion - Maximum | 270 deg |
| Mounting Style | Full Mortise |
| Pin Diameter | 5/16 in |
| Number of Holes per Leaf | 4 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Corner Type | Square |
| Includes Hardware | Hardware Included |
| Door Thickness - Minimum | 1-3/8 in |
| Door Thickness - Maximum | 3 in |
| Removable Pin | No |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
