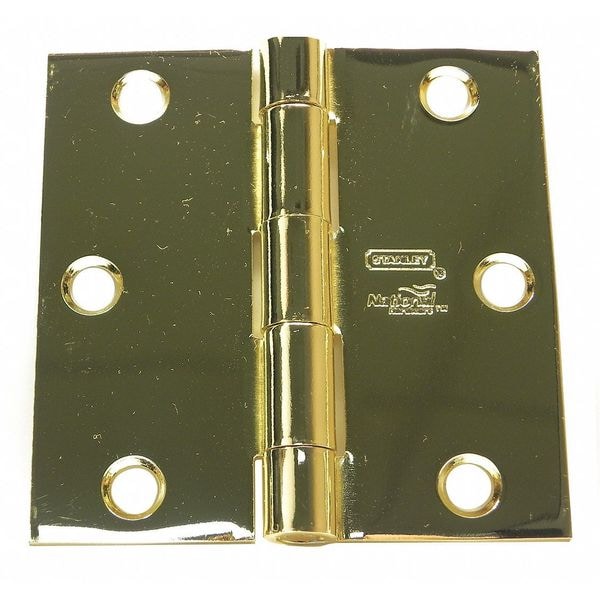

Door and Butt Hinge, Steel, Full Mortise Mounting, 1 1/4 in Leaf W x 3 in Leaf H, Bright Brass
| Corners | Square |
|---|---|
| Door Leaf Height | 3 in |
| Door Leaf Thickness | 0.123 in |
| Door Leaf Width | 1-1/4 in |
| Finish | Bright Brass |
| Holes per Leaf | 3 |
| Load Capacity | 75 lb |
| Material | Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 15/64 in |
| Range of Motion | 270 deg |
| Required Door Thickness | 1-3/8 in |
| Features | Template Screw Hole Location, For Use On Internal or External Doors Without Door Closers, Hinges Can be Furnished with Hospital Tips (HT) |
| Item | Door and Butt Hinge |
| Frame Leaf Height | 3 in |
| Frame Leaf Width | 1-1/4 in |
| Holes | With |
| Frame Leaf Thickness | 0.123 in |
| Hardware | Yes |
| Pin Material | Steel |
| Bearing Type | Plain |
| Pin Type | Removable |
| Ligature Resistant | No |
| Standards | ANSI, BHMA |
| Overall Width | 3 in |
| Hand Orientation | Non-Handed |
| ANSI/BHMA Finish | Bright Brass, Clear Coated |
| Corner Type | Square |
| Door Thickness - Maximum | 1-3/8 in |
| Pin Diameter | 1/4 in |
| Range of Motion - Maximum | 270 deg |
| Mounting Style | Full Mortise |
| Number of Holes per Leaf | 3 |
| Removable Pin | Yes |
| Includes Hardware | Hardware Included |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
