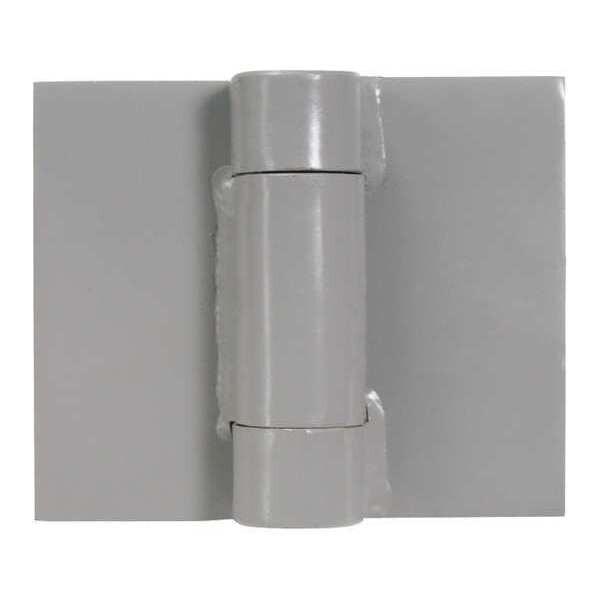

Door and Butt Hinge, Steel, Full Surface Mounting, 2 1/2 in Leaf W x 5 in Leaf H, Prime Coat
| Corners | Square |
|---|---|
| Door Leaf Height | 5 in |
| Door Leaf Thickness | 0.281 in |
| Door Leaf Width | 2-1/2 in |
| Finish | Prime Coat |
| Holes per Leaf | 0 |
| Load Capacity | 200 lb |
| Material | Steel |
| Mounting | Full Surface |
| Orientation | Non Handed |
| Pin Dia. | 5/16 in |
| Range of Motion | 270 deg |
| Required Door Thickness | 1-3/8 in to 3 in |
| Features | (16) 1/8 in Hardened and Ground Steel Balls Which are Assembled Within A Jacket, For Lead-Lined Doors to X-Ray Rooms, Rolled Knuckles are Welded and Machined |
| Pin Material | Steel |
| Frame Leaf Width | 2-1/2 in |
| Ligature Resistant | No |
| Standards | ANSI A8381 |
| Bearing Type | Concealed |
| Hinge Number | #1 |
| Hardware | Yes |
| Pin Type | Non-Removable |
| Overall Knuckle Height | 7/16 in |
| Frame Leaf Height | 5 in |
| Holes | Without |
| Frame Leaf Thickness | 0.281 in |
| Item | Door and Butt Hinge |
| Number of Wires | 6 |
| Overall Width | 6 in |
| Hand Orientation | Non-Handed |
| Number of Holes per Leaf | 0 |
| Door Thickness - Minimum | 1-3/8 in |
| Corner Type | Square |
| Removable Pin | No |
| Mounting Style | Full Surface |
| Pin Diameter | 1/2 in |
| Door Thickness - Maximum | 3 in |
| ANSI/BHMA Finish | Primed For Painting |
| Includes Hardware | Hardware Included |
| Range of Motion - Maximum | 270 deg |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
