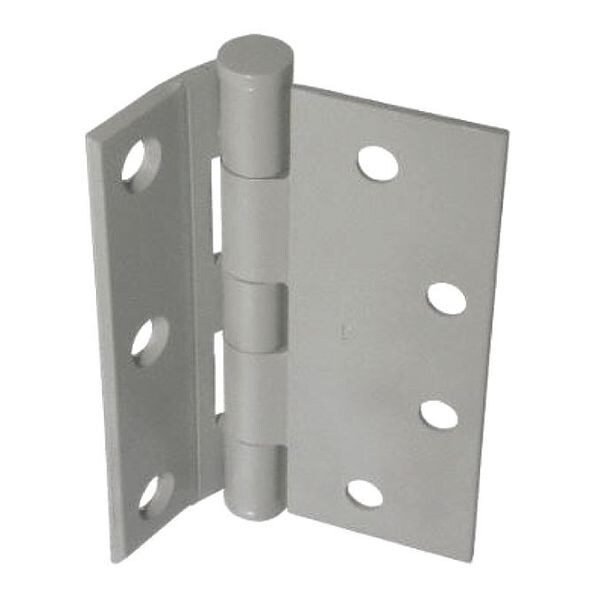

Door and Butt Hinge, Steel, Half Mortise Mounting, 2 1/16 in Leaf W x 5 in Leaf H, Prime Coat
| Corners | Square |
|---|---|
| Door Leaf Height | 4-1/2 in |
| Door Leaf Thickness | 0.134 in |
| Door Leaf Width | 2-1/16 in |
| Finish | Prime Coat |
| Holes per Leaf | 4 |
| Load Capacity | 75 lb |
| Material | Steel |
| Mounting | Half Mortise |
| Orientation | Non Handed |
| Pin Dia. | 1-1/2 in |
| Range of Motion | 270 deg |
| Required Door Thickness | 1-3/8 in |
| Features | Permanently Lubricated Non-Detachable Ball Bearings, For Medium Weight Hollow Metal or Wood Doors of Average Frequency, Hung on Channel Iron Frames, Hinges Can be Furnished with Hospital Tips (HT), Reversible Flush Tips and Pins |
| Item | Door and Butt Hinge |
| Frame Leaf Height | 5 in |
| Number of Wires | 0 |
| Bearing Type | Ball |
| Ligature Resistant | No |
| Pin Material | Stainless Steel |
| Pin Type | Non-Rising |
| Frame Leaf Width | 2-1/16 in |
| Hardware | Yes |
| Holes | With |
| Frame Leaf Thickness | 0.134 in |
| Overall Width | 4-1/2 in |
| Standards | ANSI, BHMA |
| Hand Orientation | Non-Handed |
| Mounting Style | Half Mortise |
| Number of Holes per Leaf | 4 |
| Includes Hardware | Hardware Included |
| Door Thickness - Maximum | 1-3/8 in |
| Pin Diameter | 1-1/2 in |
| Corner Type | Square |
| ANSI/BHMA Finish | Primed For Painting |
| Range of Motion - Maximum | 270 deg |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
