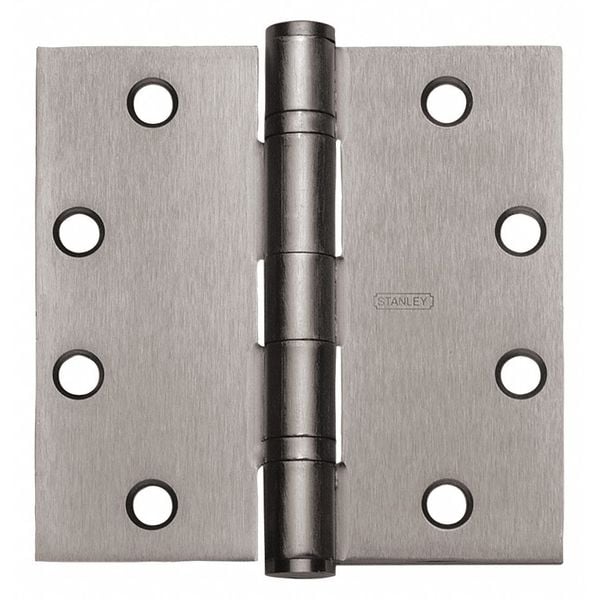

Door and Butt Hinge, Steel, Screw-On Mounting, 1 3/4 in Leaf W x 4 1/2 in Leaf H, Bright Brass
| Corners | Square |
|---|---|
| Door Leaf Height | 4-1/2 in |
| Door Leaf Thickness | 0.134 in |
| Door Leaf Width | 1-3/4 in |
| Finish | Bright Brass |
| Holes per Leaf | 4 |
| Load Capacity | 75 lb |
| Material | Steel |
| Mounting | Screw-On |
| Orientation | Non Handed |
| Pin Dia. | 1/4 in |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/4 |
| Features | Template Screw Hole Location, Permanently Lubricated Non-Detachable Ball Bearings, For Medium Weight Doors, Reversible Flush Tips and Pins |
| Frame Leaf Width | 1-3/4 in |
| Standards | ANSI A156.1 |
| Hardware | Yes |
| Holes | With |
| Pin Type | Barrel |
| Bearing Type | Ball |
| Ligature Resistant | No |
| Item | Door and Butt Hinge |
| Pin Material | Stainless Steel |
| Frame Leaf Height | 4-1/2 in |
| Overall Knuckle Height | 4-1/2 in |
| Frame Leaf Thickness | 0.134 in |
| Fire Rating - Door Hardware | 3 hr |
| Overall Width | 4-1/2 in |
| Hand Orientation | Non-Handed |
| Number of Holes per Leaf | 4 |
| Removable Pin | Yes |
| Range of Motion - Maximum | 180 deg |
| Pin Diameter | 1/4 in |
| Includes Hardware | Hardware Included |
| ANSI/BHMA Finish | Bright Brass, Clear Coated |
| Mounting Style | Full Mortise |
| Corner Type | Square |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
