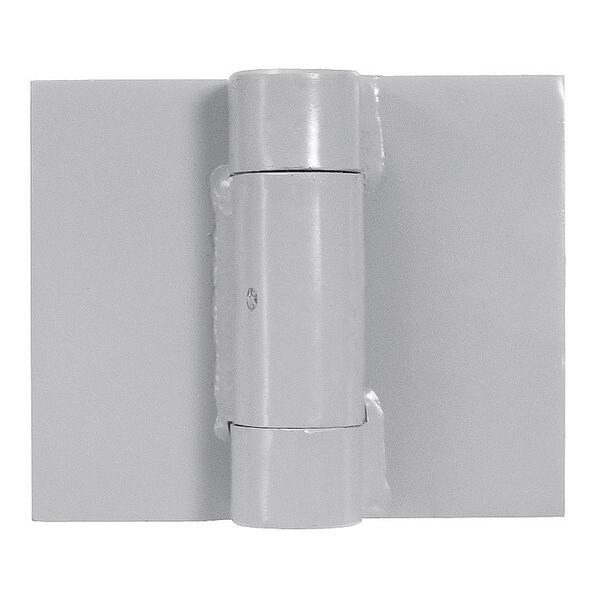

Door and Butt Hinge, Steel, Weld-On Mounting, 2 1/4 in Leaf W x 3 1/2 in Leaf H, Prime Coat
| Corners | Square |
|---|---|
| Door Leaf Height | 5 in |
| Door Leaf Thickness | 3/8 in |
| Door Leaf Width | 3 in |
| Finish | Prime Coat |
| Holes per Leaf | 0 |
| Load Capacity | 1,200 lb |
| Material | Steel |
| Mounting | Weld-On |
| Orientation | Non Handed |
| Pin Dia. | 3/4 in |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/4 in |
| Features | (16) 3/16 in Hardened and Ground Steel Balls Which are Assembled Within A Jacket, For Hinged Cell-Front Doors and Grated Steel Doors, For Lead-Lined Doors to X-Ray Rooms |
| Pin Type | Removable |
| Frame Leaf Height | 3-1/2 in |
| Hardware | Not included |
| Frame Leaf Width | 2-1/4 in |
| Holes | Without |
| Ligature Resistant | No |
| Bearing Type | Concealed |
| Pin Material | Steel |
| Frame Leaf Thickness | 3/8 in |
| Item | Door and Butt Hinge |
| Standards | ANSI A8391 |
| Overall Width | 6 in |
| Hand Orientation | Non-Handed |
| Corner Type | Square |
| Door Thickness - Maximum | 1-3/4 in |
| Mounting Style | Full Surface |
| Range of Motion - Maximum | 180 deg |
| Number of Holes per Leaf | 0 |
| Pin Diameter | 3/4 in |
| Resistance Properties | Vandal-Resistant |
| ANSI/BHMA Finish | Primed For Painting |
| Includes Hardware | Hardware Not Included |
| Removable Pin | No |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
