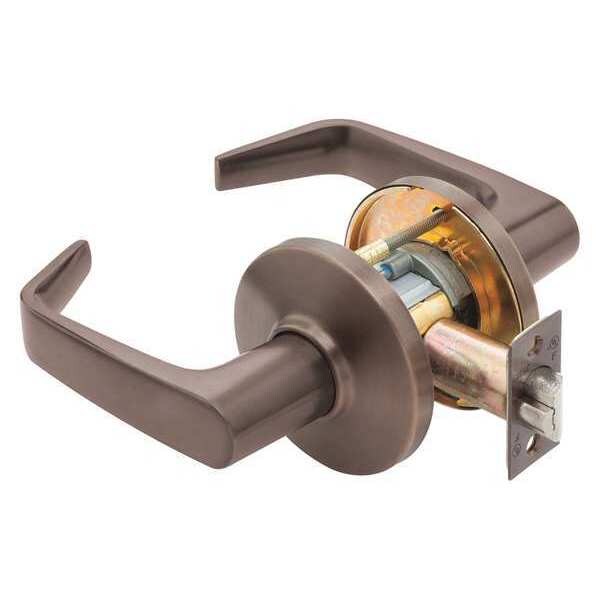

Door Lever Lockset, 4-7/8" Strike Dim
| Item | Door Lockset |
|---|---|
| Lockset Function | Privacy |
| Location Type | Commercial, Institutional, Healthcare, Industrial, Educational |
| Electrical/Mechanical | Mechanical |
| Finish | Oxidized Satin Bronze, Oil Rubbed |
| Series | 9K |
| Required Door Thickness | 1-3/8 to 1-3/4 in |
| Backset | 2 3/4 in |
| Strike Dim. | 4 7/8 in |
| Includes | Hardware |
| Style | Contour Angle Return Lever |
| Lockset Performance Strength | Heavy Duty |
| Standards | ANSI A117.1, BHMA, cULus Listed |
| Strike Type | Curved Lip |
| Fire Rating - Door Hardware | 3 hr |
| Ligature Resistant | No |
| Number of Keys | 0 |
| Mortise / Cylindrical | Cylindrical |
| Lockset Grade | 1 |
| Lockset Finish | Oil Rubbed Bronze |
| Voltage | Not Applicable |
| ADA Compliant | Yes |
| Keyway Type | None |
| Features | Hardened Steel Through-Bolt Studs |
| Cylinder Core Type | Large Format Interchangeable Core Cylinder |
| For Use With | various Door Types |
| Number of Pins | 0 |
| Mortise/Cylindrical | Cylindrical |
| Key Type | Not Keyed |
| Lockset Fire Rating | 3 hr |
| Lockset Handle Type | Lever |
| Handle Material | Zinc |
| Key Material | Not Applicable |
| Application | Commercial |
| Visual Indicator Message | No Message |
| Visual Indicator Location | Not Applicable |
| Door Thickness - Minimum | 1-3/4 in |
| ANSI/BHMA Finish | Dark Oxidized Satin Bronze, Oil Rubbed |
| Door Thickness - Maximum | 2-1/4 in |
| Performance Grade | 1 |
| Locking/Unlocking Access - Inside | Push Button |
| Knob/Handle Material | Bronze |
| Fire Rating | 3 hr |
| Hand Orientation | Non-Handed |
| Strike Plate Height | 4-7/8 in |
| ANSI Grade | 1 |
| Lockset Function ANSI Code | F76 |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Lockset Style | 9K Contour Angle Return Lever |
| Ligature-Resistant | Not Ligature-Resistant |
| Lockset Type | Mechanical |
| Includes Hardware | Hardware Included |
| Locking/Unlocking Access - Outside | Coin Turn |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
