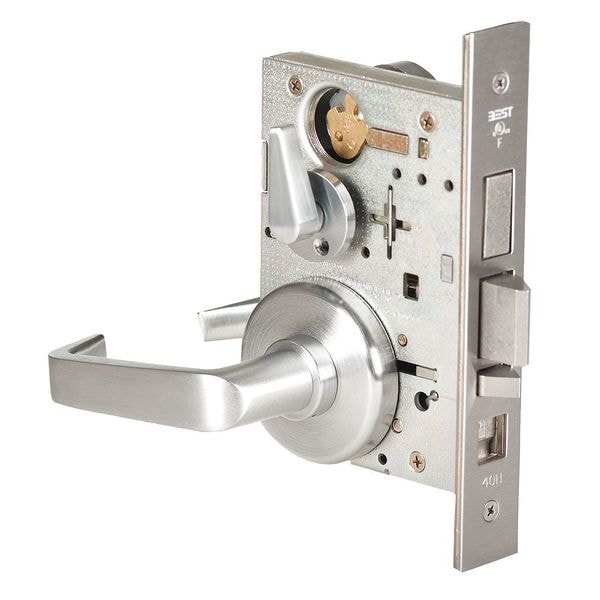

Door Lever Lockset, Mechanical, Office
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Office |
| Lockset Grade | Grade 1 |
| Style | 40H Rose |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Voltage | Not Applicable |
| Number of Pins | 7 |
| Key Material | Not Applicable |
| Number of Keys | 0 |
| Lockset Performance Strength | Heavy Duty |
| Backset | 2-3/4 in |
| Features | Contour/Angle Return, Left Hand Reverse Bevel |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| For Use With | Various Door Types |
| Includes | Latch |
| Ligature Resistant | No |
| Location Type | Commercial, Healthcare, Industrial, Multi-Family |
| ADA Compliant | Yes |
| Strike Type | Curved Lip |
| Fire Rating - Door Hardware | 3 hr |
| Series | 45H |
| Item | Door Lockset |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Handle Material | Stainless Steel |
| Lockset Fire Rating | 3 hr |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Mortise/Cylindrical | Mortise |
| Visual Indicator Message | No Message |
| Door Thickness - Minimum | 1-3/4 in |
| Fire Rating | 3 hr |
| Ligature-Resistant | Not Ligature-Resistant |
| Application | Commercial, Industrial |
| Strike Plate Height | 4-7/8 in |
| Visual Indicator Location | Not Applicable |
| Lockset Function ANSI Code | F20 |
| ANSI Grade | 1 |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Latch Bolt/Dead Bolt | Dead Bolt |
| Hand Orientation | Left-Handed |
| Locking/Unlocking Access - Outside | Keyway |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Lockset Type | Mechanical |
| Door Thickness - Maximum | 5 in |
| Includes Hardware | Hardware Included |
| Lockset Style | 40H Rose |
| Performance Grade | 1 |
| Strike Plate Thickness | 1 1/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
