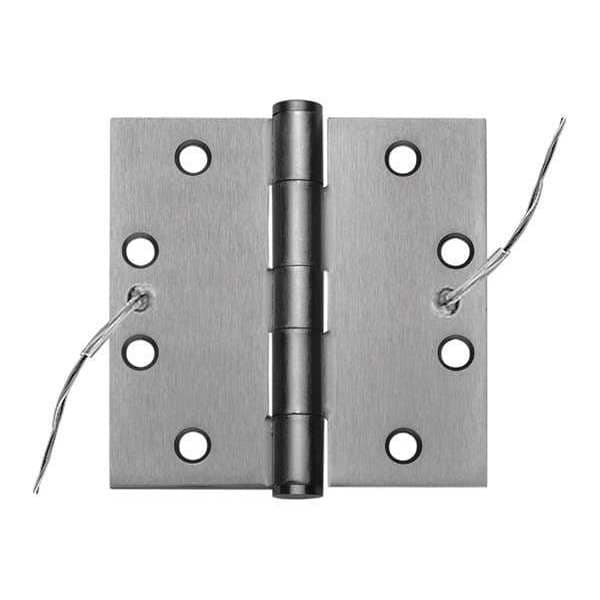

Electrified Hinge, Steel, Full Mortise Mounting, 4 1/2 in Leaf W x 4 1/2 in Leaf H, Satin Chrome
| Corners | Square |
|---|---|
| Door Leaf Height | 4-1/2 in |
| Door Leaf Thickness | 0.18 in |
| Door Leaf Width | 4-1/2 in |
| Finish | Satin Chrome |
| Holes per Leaf | 4 |
| Load Capacity | 150 lb |
| Material | Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 5/16 in |
| Range of Motion | 270 deg |
| Required Door Thickness | 1-3/8 in to 3 in |
| Features | #4 Wires; 28 AWG Wire Gauge; UL Listed |
| Item | Electrified Hinge |
| Frame Leaf Height | 4-1/2 in |
| Frame Leaf Width | 4-1/2 in |
| Pin Material | Stainless Steel |
| Overall Knuckle Height | 7/16 in |
| Hardware | Yes |
| Holes | With |
| Standards | cULus Listed |
| Pin Type | Nonremovable |
| Frame Leaf Thickness | 0.18 in |
| Ligature Resistant | No |
| Bearing Type | Concealed |
| Number of Wires | 4 |
| Input Voltage | 12V AC/DC, 24V AC/DC, 48V AC/DC, 6V AC/DC |
| Overall Width | 4-1/2 in |
| Corner Type | Square |
| Mounting Style | Full Mortise |
| Range of Motion - Maximum | 270 deg |
| Door Thickness - Maximum | 3 in |
| Number of Holes per Leaf | 4 |
| Includes Hardware | Hardware Included |
| Pin Diameter | 5/16 in |
| Hinge Type | Butt |
| Door Thickness - Minimum | 1-3/8 in |
| Includes Holes | Holes Included |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
