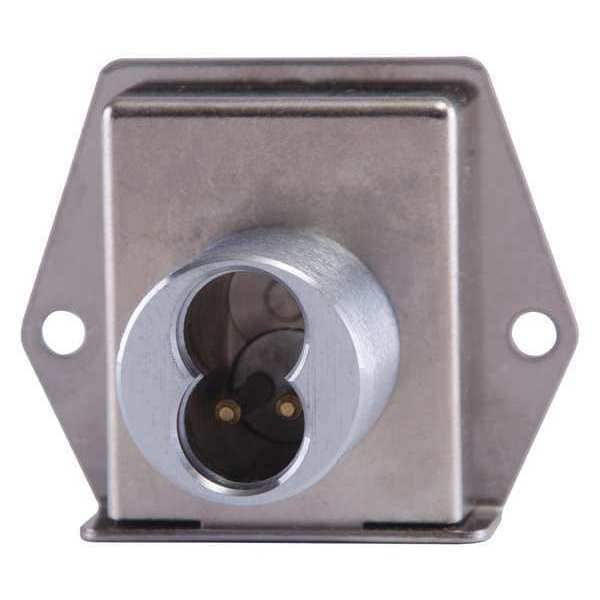

Interchangeable Core Cabinet and Drawer Dead Bolt Locks, Satin Chrome, 0 Number of Keys
| For Door Thickness (In.) | 21/32 in minimum |
|---|---|
| Item | Interchangeable Core Cabinet and Drawer Dead Bolt Locks |
| Key Type | SFIC |
| Keying | Coreless |
| Finish | Satin Chrome |
| Material | Nickel Plated Zinc Case and Bolts, Phosphor Bronze Spring, Stainless Steel Cover |
| Opens With | Key |
| Mounting Hole Dia. | 1-1/8 in |
| Number of Keys | 0 |
| Cam Width (In.) | 1-1/8 |
| Cam Length (In.) | 1-1/16 |
| Key Number | SFIC |
| For Material Thickness | 21/32 in |
| Mounting Hole Dia. (In.) | 1-1/8 |
| Drawer and Cabinet Lock Mounting Style | Mortise |
| Lock Style | Drawer |
| Lock Type | Dead Bolt |
| Mounting Hardware | Included |
| Drawer and Cabinet Lock Orientation | Inverted |
| Max. Latching Distance (In.) | 7/8 |
| Mounting Style | Mortise |
| Latch Bolt Shape | Rectangle |
| Interchangeable Core | Yes |
| Unlock Turn Direction | Clockwise |
| Lock Body Material | Steel |
| Includes | Spacer, Strike |
| Standards | ANSI/BHMA A156.11 |
| Throw Length | 7/8 in |
| Number of Mounting Holes | 7 |
| For Material | Metal |
| Body Width | 2-19/32 in |
| Body Height | 2-1/8 in |
| Includes Mounting Hardware | Yes |
| Mounting Hardware Required | No |
| Lock Body Shape | Diamond |
| Distance Between Mounting Holes | 2-3/16 in |
| Interchangeable Core Type | LFIC |
| Cylinder Diameter | 1-1/8 in |
| Cabinet Lock Type | Cabinet and Drawer Dead Bolt Locks |
| Unlocking Radius | Quarter-Turn |
| Series | L Series |
| Latch Bolt Projection | 7/8 in |
| Lock Orientation | Inverted |
| Security Level | General Security |
| Compatible Cylinder Brand | BEST |
| Rear Projection | 7/8 in |
| Body Thickness | 21/32 in |
| Key Retaining | No |
| Lock Body Color | Silver |
| Lock Body Finish | Chrome-Plated |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
