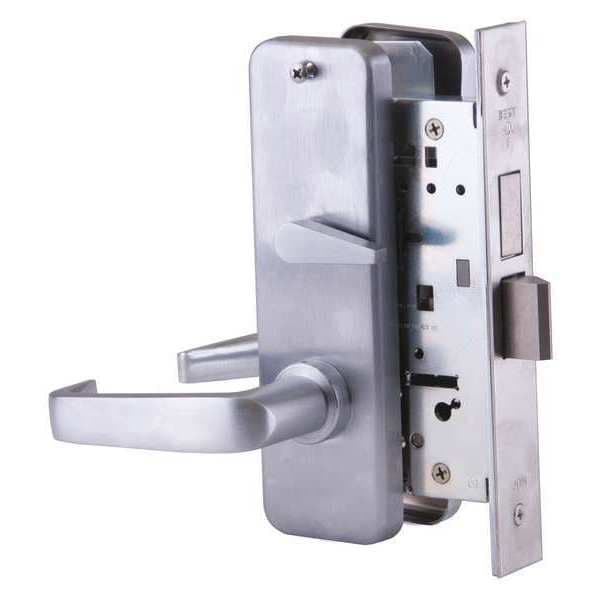

Lever Lockset, Mechanical, Privacy, Grd. 1
| Item | Door Lockset |
|---|---|
| Lockset Function | Privacy |
| Location Type | Commercial |
| Electrical/Mechanical | Mechanical |
| Grade | 1 |
| Finish | Satin Chrome |
| Series | 40H Series |
| Required Door Thickness | 1-3/4 in |
| Backset | 2 3/4 in |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Includes | Hardware |
| Number of Keys | 0 |
| Mortise/Cylindrical | Mortise |
| Lockset Fire Rating | 3 hr |
| ADA Compliant | Yes |
| Mortise / Cylindrical | Mortise |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Strike Type | ANSI |
| Ligature Resistant | No |
| Key Type | Not Keyed |
| Lockset Grade | 1 |
| Lockset Finish | Satin Chrome |
| Lockset Handle Type | Lever |
| For Use With | Hollow Metal and Wood Doors |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Style | 40H Escutcheon |
| Fire Rated | 3 hr. |
| Keyway Type | None |
| Pins | 0 |
| Voltage | Not Applicable |
| Case Material | Steel, Zinc |
| Function | Privacy |
| Handle Type | Contour/Angle Return |
| Key Material | Not Applicable |
| Visual Indicator Message | No Message |
| Visual Indicator Location | Not Applicable |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Maximum | 5 in |
| Fire Rating | 3 hr |
| Strike Plate Height | 4-7/8 in |
| Lockset Function ANSI Code | F19 |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Door Thickness - Minimum | 1-3/4 in |
| Application | Commercial, Industrial |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Lockset Type | Mechanical |
| Hand Orientation | Non-Handed |
| Performance Grade | 1 |
| ANSI Grade | 1 |
| Strike Plate Width | 1/8 in |
| Lockset Style | Escutcheon |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Includes Hardware | Hardware Included |
| Strike Plate Thickness | 1 1/4 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Locking/Unlocking Access - Inside | Thumb Turn |
| Locking/Unlocking Access - Outside | Coin Turn |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
