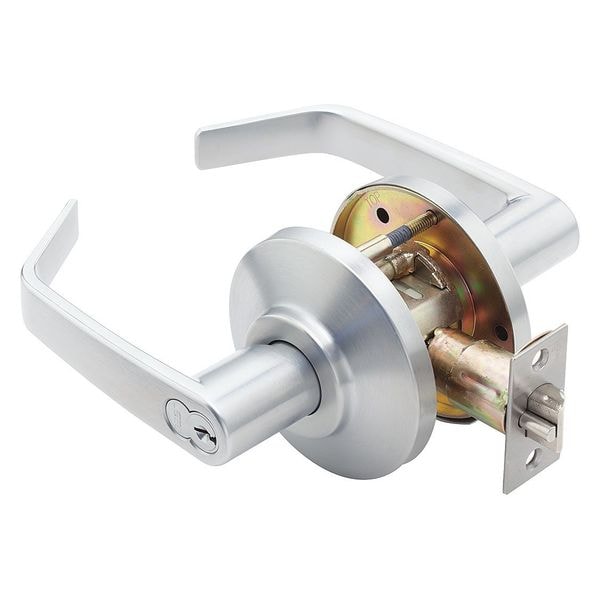

Lever Lockset, Mechanical, Storeroom
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Storeroom |
| Lockset Grade | Grade 2 |
| Style | 7KC Contour Angle Lever |
| Required Door Thickness | 1-3/8 in to 2 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Ligature Resistant | No |
| Mortise/Cylindrical | Cylindrical |
| Number of Pins | 7 |
| Features | Cylindrical Chassis to Fit Common Door Preparation, Hub Torque Spring Provides Extra Resistance to Lever Sag and Smooth, Pre-Assembled Hub Simplifies and Saves Installation Time, Quick Rekeying with Best Interchangeable Core, Snappy Operation, Through-Bolt Mounting Studs Increase Torque Resistance |
| Strike Type | Curved Lip |
| Handle Material | Plated Zinc |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| Lockset Fire Rating | 3 hr |
| Item | Door Lockset |
| Location Type | Commercial |
| Lockset Performance Strength | Light Duty |
| ADA Compliant | Yes |
| For Use With | Swinging Doors |
| Includes | Door Prep Template |
| Standards | ANSI A117.1, BHMA A156.2, cULus Listed |
| Series | 7KC |
| Number of Keys | 0 |
| Backset | 2-3/4 in |
| Fire Rated | 3 hr. |
| Key Material | Not Applicable |
| Keying | Unkeyed |
| Finish | Satin Chrome |
| Grade | 1 |
| Voltage | Not Applicable |
| Visual Indicator Message | No Message |
| Function | Storeroom |
| Cylinder | 7-Pin Housing, Less Core |
| ANSI Grade | 2 |
| Lockset Function ANSI Code | F86 |
| Door Thickness - Minimum | 1-3/8 in |
| Lockset Type | Mechanical |
| Fire Rating | 3 hr |
| Lockset Style | 7KC Contour Angle Return Lever |
| Visual Indicator Location | Not Applicable |
| Door Thickness - Maximum | 2 in |
| Performance Grade | 2 |
| Hand Orientation | Non-Handed |
| Ligature-Resistant | Not Ligature-Resistant |
| Latch Bolt/Dead Bolt | Dead Bolt |
| Application | Commercial |
| Knob/Handle Material | Zinc |
| Locking/Unlocking Access - Outside | Keyway |
| Strike Plate Height | 4-7/8 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
