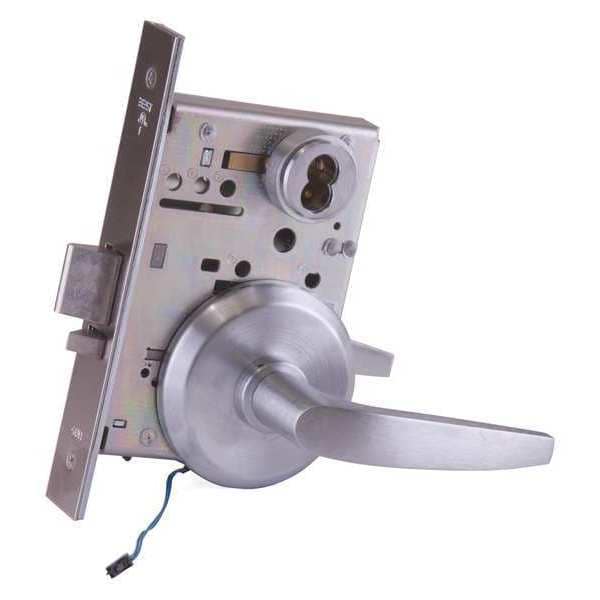

Mortise Cylinder, Satin Chrome, Grd. 1
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | 40H Rose |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Location Type | Commercial |
| Voltage | Not Applicable |
| Lockset Fire Rating | 3 hr |
| Mortise/Cylindrical | Mortise |
| Mortise / Cylindrical | Mortise |
| Electrical/Mechanical | Electrical |
| Lockset Grade | 1 |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Backset | 2 3/4 in |
| Required Door Thickness | 1-3/4 in |
| Lockset Handle Type | Lever |
| Number of Keys | 0 |
| Lockset Finish | Satin Chrome |
| Strike Type | Lip |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Ligature Resistant | No |
| Lockset Function | Storeroom |
| ADA Compliant | Yes |
| Fire Rated | 3 hr. |
| Number of Pins | 7 |
| Case Material | Steel Zinc |
| Grade | 1 |
| Pins | 0 |
| Function | Storeroom |
| Keyway Type | None |
| Key Material | Not Applicable |
| Handle Type | No Return, Curved |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Fire Rating | 3 hr |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Visual Indicator Location | Not Applicable |
| Strike Plate Lip Length | 1-1/4 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| ANSI Grade | 1 |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Door Thickness - Maximum | 5 in |
| Door Thickness - Minimum | 1-3/4 in |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Includes Hardware | Hardware Included |
| Strike Plate Thickness | 1-1/4 in |
| Locking/Unlocking Access - Outside | Keyway |
| Lockset Type | Mechanical |
| Lockset Style | 40H Rose |
| Strike Plate Height | 4-7/8 in |
| Performance Grade | 1 |
| Ligature-Resistant | Not Ligature-Resistant |
| Hand Orientation | Non-Handed |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
