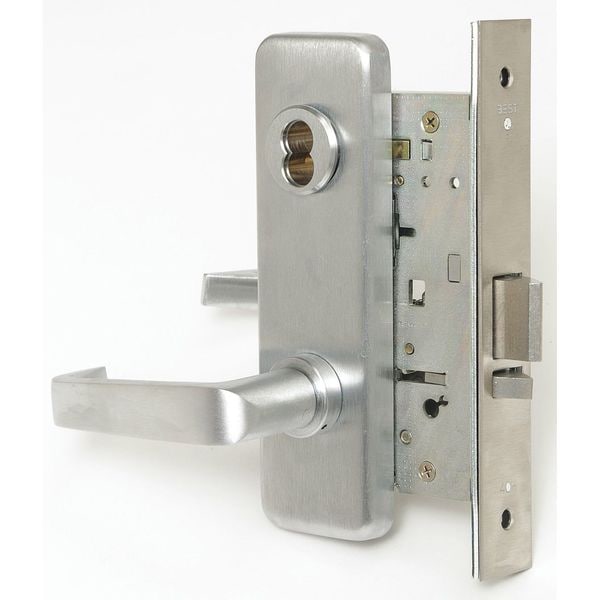

Mortise Lockset, 40H Escutcheon, Ser. 40H, Grd. 1, Storeroom
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Storeroom |
| Lockset Grade | Grade 1 |
| Style | 40H Escutcheon |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| ADA Compliant | Yes |
| Includes | 2 9/32 in W x 7 1/2 in H J Escutcheon |
| Item | Door Lockset |
| Series | 40H Series |
| Strike Dim. | 4 7/8 in x 1 1/4 in x 3/32 in |
| Mortise/Cylindrical | Mortise |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Lockset Fire Rating | 3 hr |
| For Use With | Hollow Metal and Wood Doors |
| Strike Type | ANSI |
| Location Type | Commercial |
| Backset | 2-3/4 in |
| Number of Keys | 0 |
| Ligature Resistant | No |
| Finish | Satin Chrome |
| Voltage | Not Applicable |
| Case Material | Steel, Zinc |
| Number of Pins | 7 |
| Key Material | Not Applicable |
| Pins | 0 |
| Handle Type | Contour/Angle Return |
| Function | Storeroom |
| Fire Rated | 3 hr. |
| Grade | 1 |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Ligature-Resistant | Not Ligature-Resistant |
| Strike Plate Height | 4-7/8 in |
| Lockset Style | 40H Escutcheon |
| Strike Plate Thickness | 1 1/4 in |
| Lockset Function ANSI Code | F07 |
| Fire Rating | 3 hr |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| ANSI Grade | 1 |
| Hand Orientation | Non-Handed |
| Visual Indicator Location | Not Applicable |
| Includes Hardware | Hardware Included |
| Door Thickness - Minimum | 1-3/4 in |
| Door Thickness - Maximum | 5 in |
| Performance Grade | 1 |
| Application | Commercial, Industrial |
| Lockset Type | Mechanical |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Locking/Unlocking Access - Outside | Keyway |
| Strike Plate Width | 1/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
