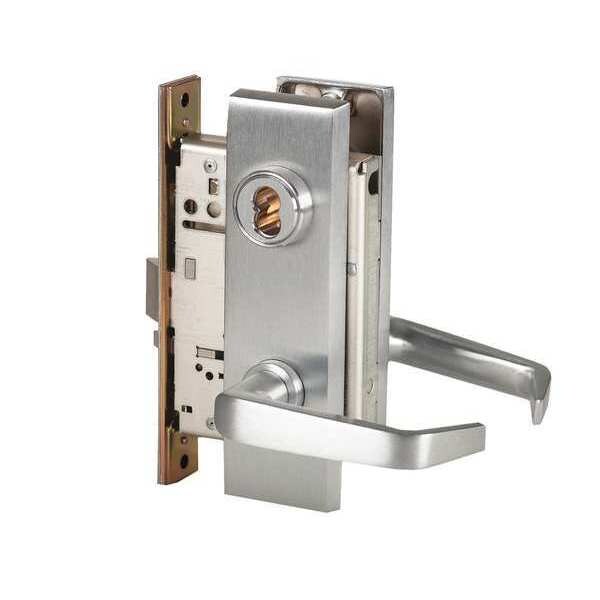

Mortise Lockset, 40H Escutcheon, Ser. 40H, Grd. 1, Storeroom
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Storeroom |
| Lockset Grade | Grade 1 |
| Style | 40H Escutcheon |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Includes | 2 1/8 in W x 8 in H M Escutcheon |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Strike Type | ANSI |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Lockset Fire Rating | 3 hr |
| Location Type | Commercial |
| Backset | 2-3/4 in |
| For Use With | Hollow Metal and Wood Doors |
| ADA Compliant | Yes |
| Number of Keys | 0 |
| Item | Door Lockset |
| Strike Dim. | 4 7/8 in x 1 1/4 in x 3/32 in |
| Ligature Resistant | No |
| Series | 40H Series |
| Mortise/Cylindrical | Mortise |
| Function | Storeroom |
| Finish | Satin Chrome |
| Fire Rated | 3 hr. |
| Handle Type | Contour/Angle Return |
| Key Material | Not Applicable |
| Number of Pins | 7 |
| Case Material | Steel, Zinc |
| Grade | 1 |
| Voltage | Not Applicable |
| Pins | 0 |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Fire Rating | 3 hr |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Includes Hardware | Hardware Included |
| Application | Commercial, Industrial |
| Visual Indicator Location | Not Applicable |
| Lockset Function ANSI Code | F07 |
| Strike Plate Width | 1/8 in |
| Hand Orientation | Non-Handed |
| Door Thickness - Maximum | 5 in |
| Lockset Type | Mechanical |
| Locking/Unlocking Access - Outside | Keyway |
| Ligature-Resistant | Not Ligature-Resistant |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Door Thickness - Minimum | 1-3/4 in |
| Lockset Style | 40H Escutcheon |
| Latch Bolt/Dead Bolt | Latch Bolt |
| ANSI Grade | 1 |
| Strike Plate Thickness | 1 1/4 in |
| Performance Grade | 1 |
| Strike Plate Height | 4-7/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
