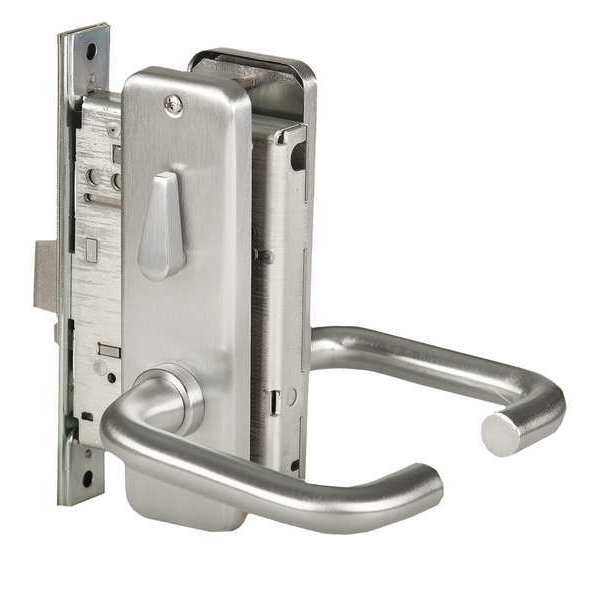

Mortise Lockset 40H Escutcheon, Series 40H, Grd. 1, Entrance
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Office |
| Lockset Grade | Grade 1 |
| Style | 40H Escutcheon |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Location Type | Commercial |
| Strike Type | ANSI |
| Lockset Fire Rating | 3 hr |
| ADA Compliant | Yes |
| Includes | Hardware |
| Item | Door Lockset |
| Mortise/Cylindrical | Mortise |
| Strike Dim. | 4 7/8 in x 1 1/4 in x 3/32 in |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Number of Keys | 0 |
| For Use With | Hollow Metal and Wood Doors |
| Series | 40H Series |
| Ligature Resistant | No |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Backset | 2-3/4 in |
| Finish | Satin Chrome |
| Function | Entrance, Office |
| Case Material | Steel, Zinc |
| Voltage | Not Applicable |
| Key Material | Not Applicable |
| Handle Type | Solid Tube, Return |
| Grade | 1 |
| Number of Pins | 7 |
| Pins | 0 |
| Fire Rated | 3 hr. |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Strike Plate Height | 4-7/8 in |
| Door Thickness - Minimum | 1-3/4 in |
| Door Thickness - Maximum | 5 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Application | Commercial, Industrial |
| Ligature-Resistant | Not Ligature-Resistant |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Visual Indicator Location | Not Applicable |
| Strike Plate Width | 1/8 in |
| ANSI Grade | 1 |
| Performance Grade | 1 |
| Lockset Function ANSI Code | F20 |
| Lockset Type | Mechanical |
| Includes Hardware | Hardware Included |
| Hand Orientation | Non-Handed |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Strike Plate Thickness | 1 1/4 in |
| Lockset Style | 40H Escutcheon |
| Fire Rating | 3 hr |
| Locking/Unlocking Access - Outside | Keyway |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
