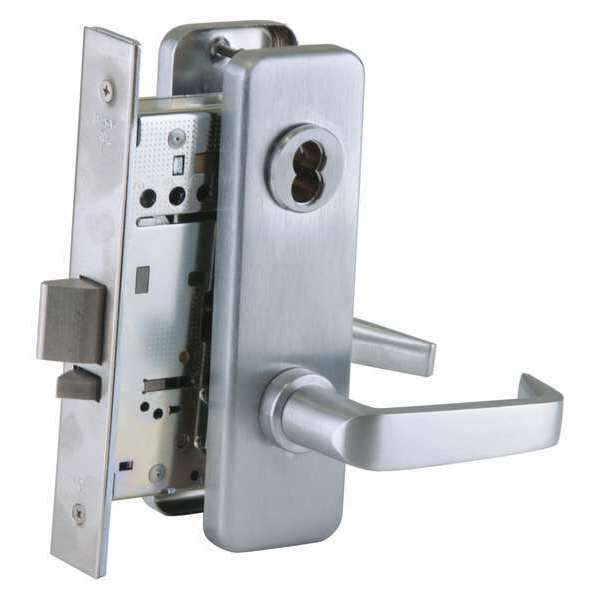

Mortise Lockset 40H Escutcheon, Series 40H, Grd. 1, Entrance
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Office |
| Lockset Grade | Grade 1 |
| Style | 40H Escutcheon |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Number of Keys | 0 |
| Item | Door Lockset |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Includes | 2 9/32 in W x 7 1/2 in H J Escutcheon, Inside Thumbturn, Single Key with Latch |
| Mortise/Cylindrical | Mortise |
| Location Type | Commercial |
| ADA Compliant | Yes |
| Lockset Fire Rating | 3 hr |
| Strike Dim. | 4 7/8 in x 1 1/4 in x 3/32 in |
| Series | 40H Series |
| Backset | 2-3/4 in |
| For Use With | Hollow Metal and Wood Doors |
| Ligature Resistant | No |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Strike Type | ANSI |
| Voltage | Not Applicable |
| Grade | 1 |
| Function | Entrance, Office |
| Handle Type | Contour/Angle Return |
| Fire Rated | 3 hr. |
| Pins | 0 |
| Finish | Satin Chrome |
| Case Material | Steel, Zinc |
| Key Material | Not Applicable |
| Number of Pins | 7 |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| ANSI Grade | 1 |
| Lockset Style | 40H Escutcheon |
| Includes Hardware | Hardware Included |
| Application | Commercial, Industrial |
| Hand Orientation | Non-Handed |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Strike Plate Height | 4-7/8 in |
| Door Thickness - Minimum | 1-3/4 in |
| Door Thickness - Maximum | 5 in |
| Performance Grade | 1 |
| Fire Rating | 3 hr |
| Ligature-Resistant | Not Ligature-Resistant |
| Locking/Unlocking Access - Outside | Keyway |
| Lockset Type | Mechanical |
| Strike Plate Width | 1/8 in |
| Lockset Function ANSI Code | F04 |
| Strike Plate Thickness | 1 1/4 in |
| Visual Indicator Location | Not Applicable |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
