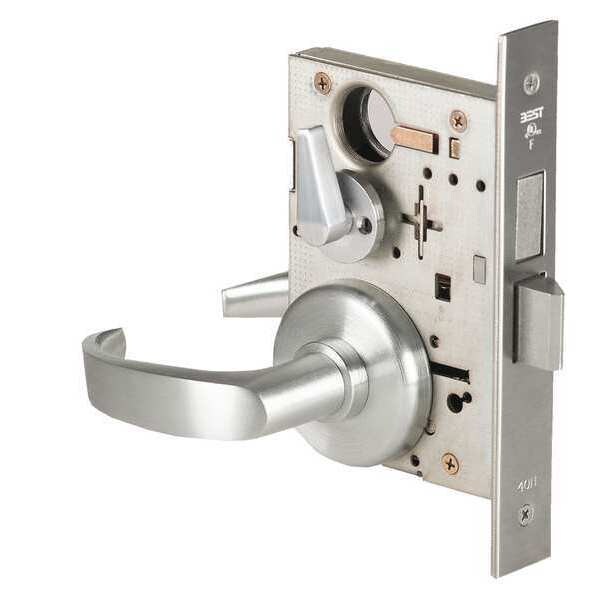

Mortise Lockset 40H Rose, Series 40H Series, Grd. 1, Privacy
| Item | Door Lockset |
|---|---|
| Lockset Function | Privacy |
| Location Type | Commercial |
| Electrical/Mechanical | Mechanical |
| Grade | 1 |
| Finish | Satin Chrome |
| Series | 40H Series |
| Required Door Thickness | 1-3/4 in |
| Backset | 2 3/4 in |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Includes | 2 3/4 in Dia R Rose Contoured with Round Edge |
| Key Type | Not Keyed |
| Lockset Finish | Satin Chrome |
| Style | 40H Rose |
| ADA Compliant | Yes |
| Mortise / Cylindrical | Mortise |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Number of Keys | 0 |
| Lockset Fire Rating | 3 hr |
| For Use With | Hollow Metal and Wood Doors |
| Ligature Resistant | No |
| Lockset Grade | 1 |
| Lockset Handle Type | Lever |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Strike Type | ANSI |
| Mortise/Cylindrical | Mortise |
| Function | Privacy |
| Pins | 0 |
| Keyway Type | None |
| Key Material | Not Applicable |
| Fire Rated | 3 hr. |
| Case Material | Steel, Zinc |
| Voltage | Not Applicable |
| Handle Type | Curved Return |
| Visual Indicator Message | No Message |
| Ligature-Resistant | Not Ligature-Resistant |
| Hand Orientation | Non-Handed |
| Lockset Type | Mechanical |
| Lockset Style | 40H Rose |
| Door Thickness - Maximum | 5 in |
| Strike Plate Width | 1/8 in |
| Performance Grade | 1 |
| Strike Plate Height | 4-7/8 in |
| Fire Rating | 3 hr |
| Door Thickness - Minimum | 1-3/4 in |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Lockset Function ANSI Code | F19 |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| ANSI Grade | 1 |
| Application | Commercial, Industrial |
| Includes Hardware | Hardware Included |
| Latch Bolt/Dead Bolt | Latch Bolt |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Visual Indicator Location | Not Applicable |
| Strike Plate Thickness | 1 1/4 in |
| Locking/Unlocking Access - Inside | Thumb Turn |
| Locking/Unlocking Access - Outside | Coin Turn |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
