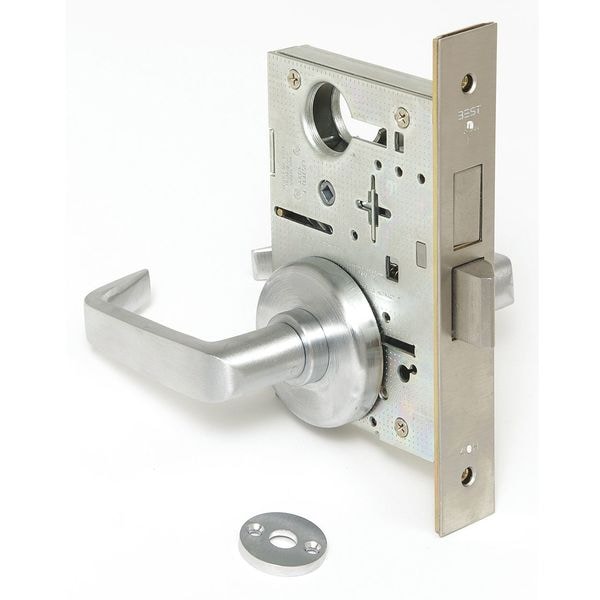

Mortise Lockset 40H Rose, Series 40H Series, Grd. 1, Privacy
| Item | Door Lockset |
|---|---|
| Lockset Function | Privacy |
| Location Type | Commercial |
| Electrical/Mechanical | Mechanical |
| Grade | 1 |
| Finish | Satin Chrome |
| Series | 40H Series |
| Required Door Thickness | 1-3/4 in |
| Backset | 2 3/4 in |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Includes | Hardware |
| Lockset Handle Type | Lever |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Mortise / Cylindrical | Mortise |
| Style | 40H Rose |
| Strike Type | ANSI |
| ADA Compliant | Yes |
| Lockset Finish | Satin Chrome |
| Lockset Grade | 1 |
| Ligature Resistant | No |
| Number of Keys | 0 |
| For Use With | Hollow Metal and Wood Doors |
| Mortise/Cylindrical | Mortise |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Lockset Fire Rating | 3 hr |
| Key Material | Not Applicable |
| Pins | 0 |
| Keyway Type | None |
| Handle Type | Contour/Angle Return |
| Function | Privacy |
| Voltage | Not Applicable |
| Case Material | Steel, Zinc |
| Fire Rated | 3 hr. |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Fire Rating | 3 hr |
| Door Thickness - Minimum | 1-3/4 in |
| Door Thickness - Maximum | 5 in |
| Lockset Function ANSI Code | F19 |
| Ligature-Resistant | Not Ligature-Resistant |
| Strike Plate Width | 1/8 in |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Hand Orientation | Non-Handed |
| Lockset Type | Mechanical |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Performance Grade | 1 |
| Includes Hardware | Hardware Included |
| Lockset Style | 40H Rose |
| Latch Bolt/Dead Bolt | Latch Bolt |
| ANSI Grade | 1 |
| Application | Commercial, Industrial |
| Visual Indicator Location | Not Applicable |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Strike Plate Height | 4-7/8 in |
| Strike Plate Thickness | 1 1/4 in |
| Locking/Unlocking Access - Inside | Thumb Turn |
| Locking/Unlocking Access - Outside | Coin Turn |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
