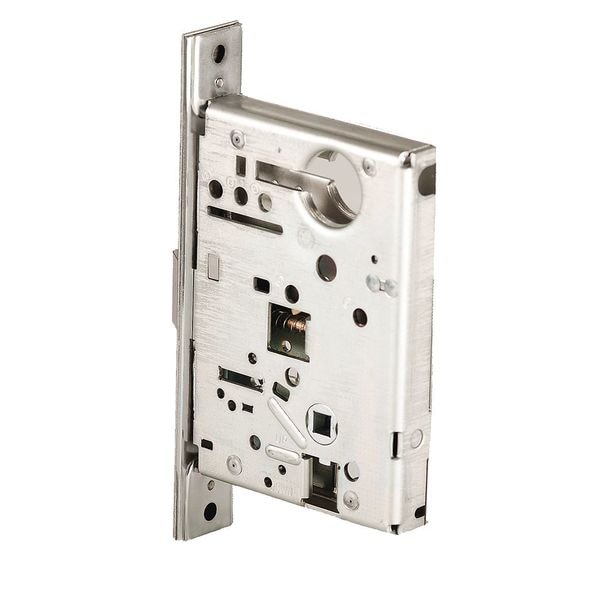

Mortise Lockset, 40H Series, 40H Lock Body, Elec.
| Item | Mortise Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | 40H Lock Body |
| Series | 40H Series |
| Application | Commercial |
| Features | Fail Secure |
| Handle Type | Lock Body, No Trim |
| Strike Type | ASA |
| Required Door Thickness | 1 3/4 in |
| Fire Rated | 3 hr |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| ADA Compliant | Yes |
| Backset | 2 3/4 in |
| Electrical/Mechanical | Electrical |
| Case Material | Steel |
| Function | Storeroom/Fail Secure |
| Voltage | 24V AC/DC |
| Number of Keys | 0 |
| Pins | 0 |
| Grade | 1 |
| Standards | ANSI, BHMA, cULus Listed |
| Location Type | Commercial |
| Case Size | 5-7/8 in x 7/8 in x 4-1/16 in |
| Number of Pins | 0 |
| Trim Style | No Trim |
| Lockset Function | Storeroom |
| Product Type | Mortise Lockset |
| Fire Rating | 3 hr |
| Includes Hardware | Hardware Included |
| Strike Plate Width | 1-1/4 in |
| Strike Plate Height | 4-7/8 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Case Depth | 7/8 in |
| Lockset Type | Electrical |
| Knob/Handle Material | Steel |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Strike Plate Thickness | 3/32 in |
| Performance Grade | 1 |
| Case Width | 4-1/16 in |
| Lockset Style | 40H Lock Body |
| Case Height | 5-7/8 in |
| Door Thickness - Maximum | 1-3/4 in |
| Hand Orientation | Non-Handed |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
