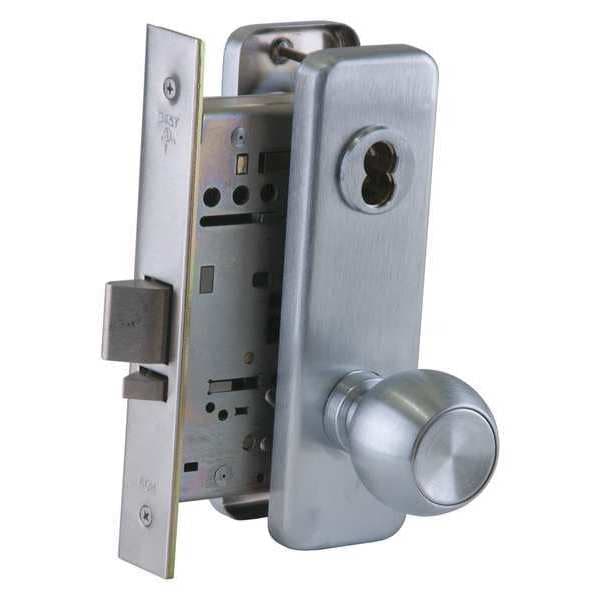

Mortise Lockset, Knob, 40H Ser., 40H Escutcheon, Store, Mech.
| Lockset Finish | Satin Chrome |
|---|---|
| Lockset Grade | 1 |
| Lockset Handle Type | Knob |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Storeroom |
| Required Door Thickness | 1-3/4 in |
| Keyway Type | None |
| Key Type | Not Keyed |
| Series | 40H Series |
| Key Material | Not Applicable |
| Electrical/Mechanical | Mechanical |
| Backset | 2-3/4 in |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Includes | Hardware |
| Ligature Resistant | No |
| Location Type | Commercial |
| ADA Compliant | Yes |
| Pins | 0 |
| Item | Door Lockset |
| Strike Type | ANSI |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Number of Keys | 0 |
| For Use With | Hollow Metal and Wood Doors |
| Lockset Fire Rating | 3 hr |
| Style | 40H Escutcheon |
| Mortise/Cylindrical | Mortise |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Voltage | Not Applicable |
| Case Material | Steel, Zinc |
| Number of Pins | 7 |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Performance Grade | 1 |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Lockset Function ANSI Code | F30 |
| Strike Plate Height | 4-7/8 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Strike Plate Thickness | 1 1/4 in |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Locking/Unlocking Access - Outside | Keyway |
| Application | Commercial, Industrial |
| Door Thickness - Maximum | 5 in |
| Hand Orientation | Non-Handed |
| Locking/Unlocking Access - Inside | Keyway |
| Includes Hardware | Hardware Included |
| ANSI Grade | 1 |
| Strike Plate Width | 1/8 in |
| Fire Rating | 3 hr |
| Lockset Type | Mechanical |
| Lockset Style | 40H Escutcheon |
| Door Thickness - Minimum | 1-3/4 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
